Fig. 7
- ID
- ZDB-FIG-150811-12
- Publication
- Moreno-Ayala et al., 2015 - PIAS-like protein Zimp7 is required for the restriction of the Zebrafish organizer and mesoderm development
- Other Figures
- All Figure Page
- Back to All Figure Page

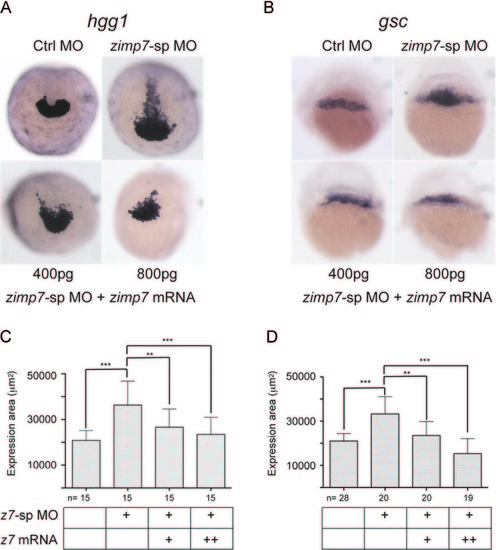

Co-injection of zimp7-sp MO and mRNA restores the normal level of expression of markers in embryos. (A) Anterior views of 3-somite stage embryos with dorsal toward the top. Expression of hgg1 is shown for control embryos, zimp7-sp MO injected embryos and embryos co-injected with zimp7-sp MO plus the indicated amounts of zimp7 mRNA. (B) Expression of gsc at shield stage in control embryos, zimp7-sp MO injected embryos and embryos co-injected with zimp7-sp MO plus the indicated amounts of zimp7 mRNA. Dorsal views. (C and D) For both markers the expression area was measured for a group of embryos (numbers indicated at the bottom of each bar) and the average area was plotted for each condition. Statistical analysis indicated a significant rescue of the normal level of expression for both markers. Bars represent standard deviation. **p<0.01; ***p<0.001. |
| Genes: | |
|---|---|
| Fish: | |
| Knockdown Reagent: | |
| Anatomical Terms: | |
| Stage Range: | Shield to 1-4 somites |
Reprinted from Developmental Biology, 403(1), Moreno-Ayala, R., Schnabel, D., Salas-Vidal, E., Lomelí, H., PIAS-like protein Zimp7 is required for the restriction of the Zebrafish organizer and mesoderm development, 89-100, Copyright (2015) with permission from Elsevier. Full text @ Dev. Biol.
