Fig. 2

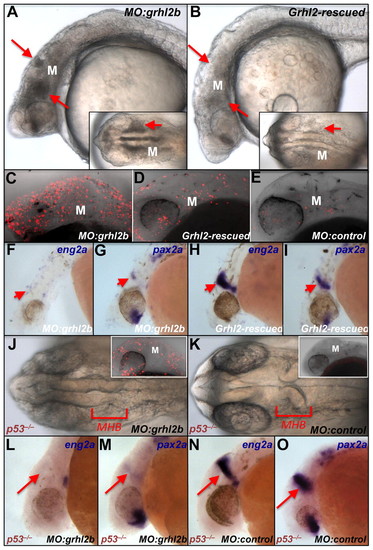

Rescue of neural apoptosis and MHB marker loss in grhl2b morphants by mouse Grhl2 mRNA. (A-E) Cell death rescue (arrows) demonstrated by bright-field microscopy (A,B, insets) and TUNEL staining (C-E) around the MHB region (M) of embryos sequentially injected with MO:grhl2b and either control lacZ mRNA (A,C) or mouse Grhl2 mRNA (B,D). TUNEL staining reveals few apoptotic cells in an embryo injected with MO:control (E). (F-I) Rescue (arrows) of MHB marker expression (eng2a, pax2a) in embryos sequentially injected with MO:grhl2b and either lacZ mRNA (F,G) or mouse Grhl2 mRNA (H,I). (J-O) Persistent defects in MHB folding (J,K) and marker expression (eng2a, pax2a) (L-O, arrows) in p53^–/– fish injected with MO:grhl2b compared with MO:control. TUNEL assay confirms substantially reduced apoptosis in p53^–/– fish injected with MO:grhl2b (J, inset; compare with C)

Expression Data

Genes:	en2a pax2a
Fish:	tp53^zdf1/zdf1 WT + MO2-grhl2b tp53^zdf1/zdf1 + MO2-grhl2b
Knockdown Reagent:	MO2-grhl2b
Anatomical Term:	midbrain hindbrain boundary
Stage:	Prim-5

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	tp53^zdf1/zdf1 WT + MO2-grhl2b tp53^zdf1/zdf1 + MO2-grhl2b
Knockdown Reagent:	MO2-grhl2b
Observed In:	brain midbrain hindbrain boundary midbrain-hindbrain boundary morphogenesis whole organism
Stage:	Prim-5

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Development
