ZFIN ID: ZDB-FIG-090519-21
Petko et al., 2009 - Proteomic and functional analysis of NCS-1 binding proteins reveals novel signaling pathways required for inner ear development in zebrafish. BMC Neuroscience   10:27 Full text @ BMC Neurosci.
ADDITIONAL FIGURES
EXPRESSION / LABELING:
Genes:
Fish:
Anatomical Terms:
Stage Range: Long-pec to Protruding-mouth

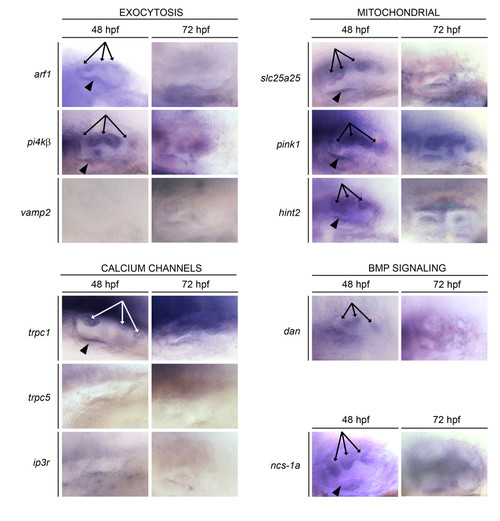

Fig. 1 Expression of NCS-1 binding partners (NBPs) during zebrafish inner ear development. Whole mount in situ hybridization analysis was performed at 48 and 72 hpf. Genes are grouped according to presumed functional properties. All images are lateral views of the otic vesicle, anterior to the left. Arrows indicate mRNA expression in semicircular canal protrusions at 48 hpf. Arrowheads indicate mRNA expression in the anterior macula at 48 hpf.

Gene Expression Details
Gene Antibody Fish Conditions Stage Qualifier Anatomy Assay
arf1 WT standard conditions Long-pec semicircular canal ISH
Protruding-mouth Not Detected semicircular canal ISH
hint2 WT standard conditions Long-pec anterior macula ISH
Long-pec semicircular canal ISH
Protruding-mouth semicircular canal ISH
itpr3 WT standard conditions Long-pec Not Detected inner ear ISH
Protruding-mouth Not Detected inner ear ISH
nbl1 WT standard conditions Long-pec semicircular canal ISH
Protruding-mouth semicircular canal ISH
ncs1a WT standard conditions Long-pec semicircular canal ISH
Protruding-mouth semicircular canal ISH
pi4kb WT standard conditions Long-pec semicircular canal ISH
Protruding-mouth semicircular canal ISH
pink1 WT standard conditions Long-pec anterior macula ISH
Long-pec semicircular canal ISH
Protruding-mouth semicircular canal ISH
slc25a25a WT standard conditions Long-pec anterior macula ISH
Long-pec semicircular canal ISH
Protruding-mouth semicircular canal ISH
trpc1 WT standard conditions Long-pec semicircular canal ISH
Protruding-mouth semicircular canal ISH
trpc5a WT standard conditions Long-pec Not Detected inner ear ISH
Protruding-mouth Not Detected inner ear ISH
vamp2 WT standard conditions Long-pec Not Detected inner ear ISH
Protruding-mouth Not Detected inner ear ISH
Antibody Labeling Details No data available
Phenotype Details No data available
