Fig. 6

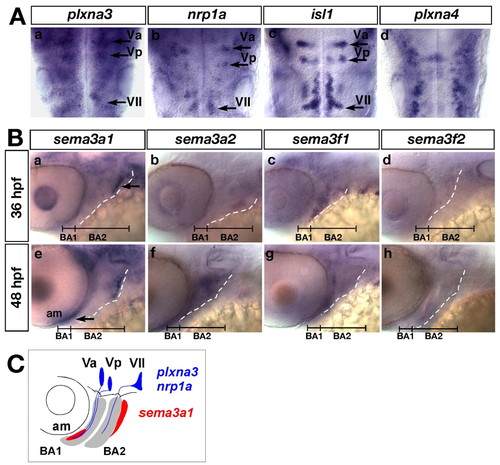

Expression of the zebrafish orthologues of plxna3, plxna4, nrp1a, sema3a and sema3f in the cranial region of zebrafish embryos. (Aa-d) Expression of plxna3, nrp1a, isl1 and plxna4 mRNA in the cranial motoneurons at 36 hpf. Dorsal views; anterior, top. (Ba-h) Expression of sem3a1, sema3a2, sema3f1 and sema3f2 mRNA in the jaw region. Lateral views; anterior, left. Broken lines indicate the posterior margin of BA2. Arrows indicate the expression domains of sema3a1. (C) Schematic of the expression patterns of plxna3, nrp1a (blue) and sema3a1 (red).

Expression Data
Genes:
Fish:
Anatomical Terms:
Stage Range: Prim-25 to Long-pec
