Fig. S3

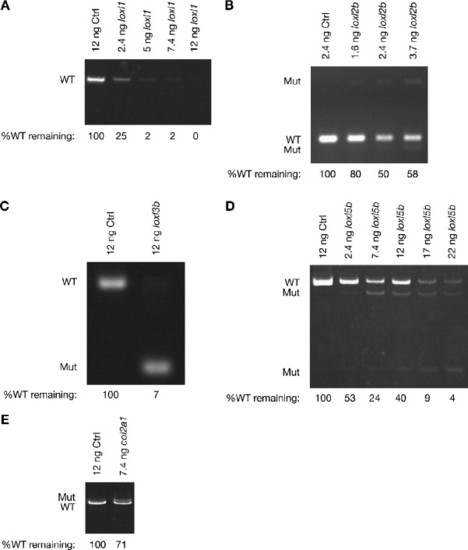

Lysyl oxidase and collagen II splice morpholinos decrease the abundance of wild-type splice forms and cause specific changes in splice site usage. (A) loxl1, (B) loxl2b, (C) loxl3b, (D) loxl5b and (E) col2a1. Wild-type embryos injected with the indicated doses of morpholino were harvested at 20 hpf and cDNA prepared from equal amounts of RNA. The intensity of the wild-type (WT) product obtained by PCR was quantified and the percentage of wild-type splice form remaining after morpholino knockdown determined, as noted. This measure is independent of processes that may depress levels of the mutant (Mut) splice products, including degradation through nonsense-mediated decay. The primer set used to amplify loxl1 does not amplify the mutant band.

Expression Data

Genes:	col2a1a loxl1 loxl2b loxl3b loxl5b
Fish:	WT WT + MO1-col2a1a WT + MO1-loxl1 WT + MO1-loxl2b WT + MO1-loxl3b WT + MO1-loxl5b
Knockdown Reagents:	MO1-col2a1a MO1-loxl1 MO1-loxl2b MO1-loxl3b MO1-loxl5b
Anatomical Term:	whole organism
Stage:	20-25 somites

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 307(2), Gansner, J.M., Mendelsohn, B.A., Hultman, K.A., Johnson, S.L., and Gitlin, J.D., Essential role of lysyl oxidases in notochord development, 202-213, Copyright (2007) with permission from Elsevier. Full text @ Dev. Biol.
