FIGURE

Fig. 2

ID

ZDB-FIG-060707-3

Publication

Goishi et al., 2006 - {alpha}A-crystallin expression prevents {gamma}-crystallin insolubility and cataract formation in the zebrafish cloche mutant lens

Other Figures

All Figure Page

Back to All Figure Page

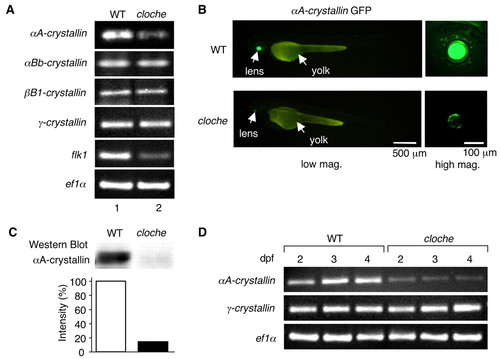

Fig. 2

crystallin gene expression. (A) Zebrafish embryo (2.5 dpf) mRNA expression levels were analyzed by semi-quantitative RT-PCR. Lane 1, wild type; lane 2, cloche. Wild-type versus cloche gene expression is shown for αA-crystallin, αBb-crystallin, ßB1-crystallin, γ-crystallin and flk1 (vegfr2). ef1a was used as a loading control. (B) &alphaA-crystallin promoter-EGFP was injected into one- to four-cell stage embryos and fluorescence (green) was measured at 2.5 dpf. Lateral views are shown at low and high magnifications. Fluorescence was found only in the lens and was greatly diminished in the cloche lens. (C) Western blot. Total protein as described in Fig. 1A were extracted and lysates (2 µg) were separated by SDS-PAGE and analyzed by western blotting with anti-αA-crystallin. The bands were analyzed by an image analysis program (ImageJ) and the values were normalized to wild-type bands being 100%. (D) Crystallin expression as function of development. Zebrafish embryo (2-4 dpf) mRNA expression levels were analyzed by semi-quantitative RT-PCR. Wild-type versus cloche gene expression is shown for αA-crystallin and γ-crystallin expression. ef1a was used as a loading control.

Expression Data

Genes:	cryaa cryabb crybb1 crygm2d1 eef1a1l1 kdrl
Fish:	WT Df(Chr13:klhdc3,lclat1,npas4l,slc30a10)m39 (INDO)
Anatomical Term:	whole organism
Stage Range:	Long-pec to Day 4

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail
