Fig. 5
|
Figure Caption

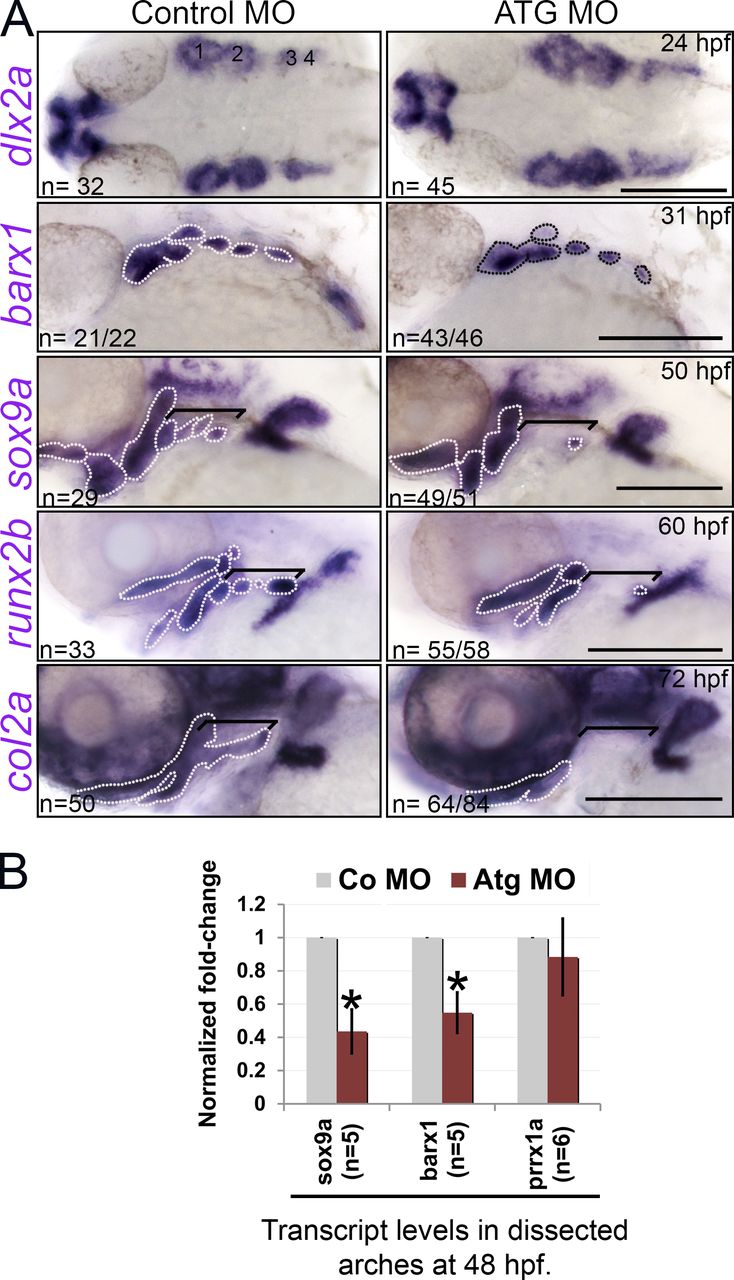

Fig. 5 PCC differentiation is affected in rbms3 morphants. (A) dlx2a PCC condensations are normal (1–4) yet PCC/chondrogenic (barx1, sox9a, and col2a1a) and osteogenic (runx2b) markers are severely affected in morphants. Area highlighted by the broken lines and brackets: pharyngeal arch expression. Brackets: posterior arch expression. Bars, 200 µM. (B) QPCR shows reduction in sox9a and barx1 in rbms3 morphants. Error bars indicate SD. *, P < 0.005 (Student’s t test). n = independent pools of RNA.
Figure Data
