Fig. 5

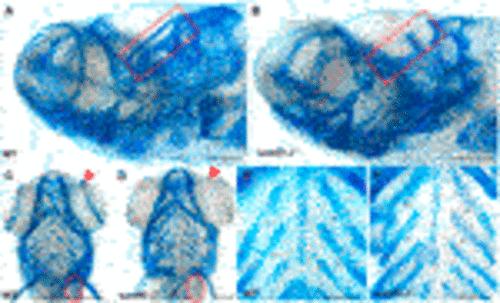

FIGURE 5. Analysis of craniofacial cartilage at 30 d.p.f. The semi-circular canal (red box) and the scapulocorocoid (red circle) were present in wildtype (A,C) were missing in sumf1^−/− larvae (B,D). Similarly, supraorbital cartilage (red arrow) was well developed in wildtype larvae (C) but retarded in sumf1^−/− larvae. Notably, chondrocytes in the branchial arches were neatly stacked (intercalated) in wildtype larvae (E), whereas the intercalation of the chondrocytes was disrupted in sumf1^−/− larvae (F). Scalebar represents 200 μm. Representative images of n = 3 samples for each genotype.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	sumf1^{la015919Tg/la015919Tg} (TL)
Observed In:	pharyngeal arch chondrocyte scapulocoracoid semicircular canal supraorbital bone
Stage:	Days 30-44

Phenotype Detail
