ZFIN Figure: Rojas-Benítez et al., 2020, Figure 4

ZFIN ID: ZDB-FIG-200314-57

ZFIN ID: ZDB-FIG-200314-57

Rojas-Benítez et al., 2020 - Elongator Subunit 3 (Elp3) Is Required for Zebrafish Trunk Development. International Journal of Molecular Sciences 21(3) Full text @ Int. J. Mol. Sci.

ADDITIONAL FIGURES

EXPRESSION / LABELING:

Gene:	col2a1a
Antibody:	Ab1-eng
Fish:	WT WT + MO1-elp3 WT + MO2-elp3
Knockdown Reagents:	MO1-elp3 MO2-elp3
Anatomical Terms:	adaxial cell notochord
Stage:	Prim-5

PHENOTYPE:

Fish:	WT + MO1-elp3 WT + MO2-elp3
Knockdown Reagents:	MO1-elp3 MO2-elp3
Observed In:	adaxial cell notochord
Stage:	Prim-5

Figure 4

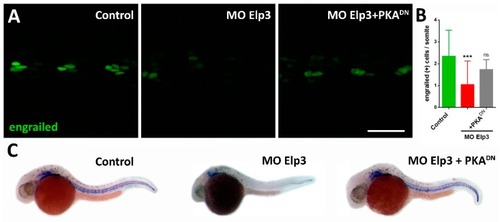

Shh activity is diminished in ELP morphants. (A) Immunohistochemistry usnig an anti-Engrailed antibody to visualize the adaxial cells. Control, elp3 morphants and MO/PKA^DN mRNA-injected animals were analyzed 24 hpf. (B) The number of engrailed(+) cells were counted (N = 4, n = 30, ANOVA *** p < 0.005). (C) In situ hybridization to detect the expression pattern of col2a1 in control, elp3 morphants and MO/PKA^DN mRNA-injected fish (images representative of four independent experiments). Scale bar 40 µm.

Gene Expression Details

Gene	Fish	Conditions	Stage	Anatomy	Assay
col2a1a	WT	control	Prim-5	notochord	ISH
	WT + MO1-elp3	standard conditions	Prim-5	notochord	ISH
	WT + MO2-elp3	standard conditions	Prim-5	notochord	ISH

Antibody Labeling Details

Antibody	Assay	Fish	Conditions	Stage	Anatomy
Ab1-eng	IHC	WT	control	Prim-5	adaxial cell
	IHC	WT + MO1-elp3	standard conditions	Prim-5	adaxial cell
	IHC	WT + MO2-elp3	standard conditions	Prim-5	adaxial cell

Phenotype Details

Fish	Conditions	Stage	Phenotype
WT + MO1-elp3	standard conditions	Prim-5	adaxial cell ab1-eng labeling decreased amount, abnormal
		Prim-5	notochord col2a1a expression decreased amount, abnormal
WT + MO2-elp3	standard conditions	Prim-5	adaxial cell ab1-eng labeling decreased amount, abnormal
		Prim-5	notochord col2a1a expression decreased amount, abnormal
