ZFIN Figure: Ahuja et al., 2016, Fig. 8

ZFIN ID: ZDB-FIG-160427-9

ZFIN ID: ZDB-FIG-160427-9

Ahuja et al., 2016 - Id4 functions downstream of Bmp signaling to restrict TCF function in endocardial cells during atrioventricular valve development. Developmental Biology 412(1):71-82 Full text @ Dev. Biol.

ADDITIONAL FIGURES

EXPRESSION / LABELING:

Genes:	mCherry spp1
Fish:	WT apc^hu745/hu745 ia5Tg id4^bns18/+; ia5Tg id4^bns18/bns18; ia5Tg
Anatomical Terms:	atrioventricular canal endocardium endocardial cushion
Stage Range:	Long-pec to Protruding-mouth

PHENOTYPE:

Fish:	apc^hu745/hu745 id4^bns18/bns18; ia5Tg
Observed In:	atrioventricular canal endocardium endocardial cushion
Stage Range:	Long-pec to Protruding-mouth

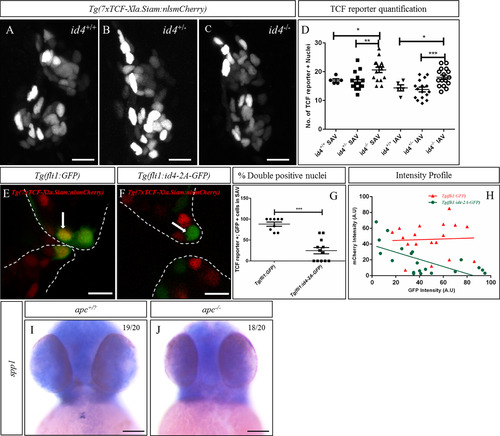

Fig. 8

Id4 negatively regulates TCF function in the atrioventricular canal (AVC). (A, B, C) Larvae from incrosses of id4 heterozygous fish or from crossing id4^+/- males to id4^-/- females in a Tg(7xTCF-Xla.Siam:nlsmCherry) background were imaged at 77 hpf followed by quantification (D) of TCF positive nuclei. We observed a significant increase in the number of TCF reporter positive cells in id4 mutants as compared to siblings. (E, F) Transient endothelial specific overexpression of id4 caused a dose dependent reduction of TCF reporter signal (F) in the AVC as compared to the overexpression of GFP alone (E). Arrows point to GFP expressing TCF reporter positive nuclei (E) and id4 expressing TCF reporter negative nuclei (F). (G) Percentage of TCF reporter positive cells in transient GFP and id4 overexpression larvae and their intensity profile (H). (I, J) At 52 hpf, apc mutants show reduced spp1 expression as compared to their wild-type siblings. Scale bars, A-C and E-F: 10 µm; I-J: 100 µm (SAV, Superior AVC; IAV, Inferior AVC.) p value *<0.05, **<0.01, ***<0.001.

Gene Expression Details

Gene	Fish	Conditions	Stage	Anatomy	Assay
mCherry	ia5Tg	standard conditions	Protruding-mouth	endocardial cushion	IFL
	id4^bns18/+; ia5Tg	standard conditions	Protruding-mouth	endocardial cushion	IFL
	id4^bns18/bns18; ia5Tg	standard conditions	Protruding-mouth	endocardial cushion	IFL
spp1	WT	control	Long-pec	atrioventricular canal endocardium	ISH
	apc^hu745/hu745	control	Long-pec	atrioventricular canal endocardium	ISH

Antibody Labeling Details No data available

Phenotype Details

Fish	Conditions	Stage	Phenotype
apc^hu745/hu745	control	Long-pec	atrioventricular canal endocardium spp1 expression decreased amount, abnormal
id4^bns18/bns18; ia5Tg	standard conditions	Protruding-mouth	endocardial cushion mCherry expression increased distribution, abnormal
