Fig. 6

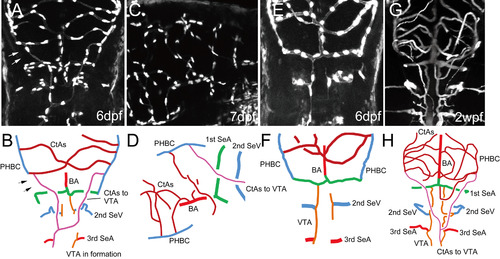

Remodeling process for the temporal integration of cerebral and spinal vascular systems. Multi-photon microscopic image of Tg(fli1a:EGFP)y7 embryos at 6 (A and E) and 7 dpf (C); microangiography with highlighter ink of casper larvae at 2.5 wpf (G); and their schematic diagrams (B, D, F and H). Dorsal (A, E, and G) and dorso-lateral (C) views. Two pathways, connecting vascular systems, are indicated by colored lines (B, D and H pink lines: supplemental route of CtAs to VTAs; B, F and H brown lines: conventional route of BA-1st SeAs to VTAs). Arrows in A and B indicate the disconnection of the PHBC and DLAV. |
