ZFIN ID: ZDB-FIG-150402-1
Kok et al., 2015 - Reverse Genetic Screening Reveals Poor Correlation between Morpholino-Induced and Mutant Phenotypes in Zebrafish. Developmental Cell   32(1):97-108 Full text @ Dev. Cell
ADDITIONAL FIGURES
EXPRESSION / LABELING:
Gene:
Fish:
Anatomical Term:
Stage: Prim-5
PHENOTYPE:
Fish:
Observed In:
Stage Range: Prim-5 to Day 5

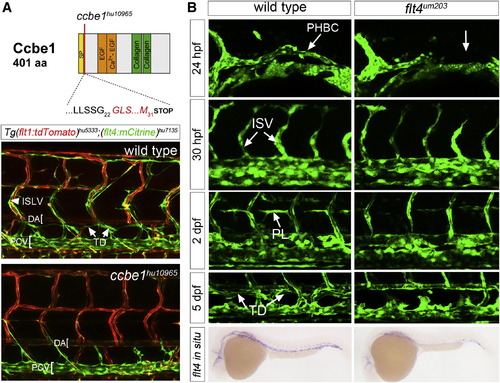

Fig. 1

TALEN-Generated Mutations in ccbe1 and flt4 Cause Lymphatic Defects

(A) Schematic of Ccbe1 protein indicating position of the ccbe1hu10965 frameshift. SP, signal peptide; EGF, EGF-like domain; Ca2+-EGF, calcium-binding EGF-like domain; and collagen, collagen-like domain. Images are confocal micrographs of wild-type or ccbe1hu10965 mutant embryo bearing Tg(flt4:mCitrine)hu7135 (green) and Tg(flt1:tdTomato)hu5333 (red) transgenes. Homozygous ccbe1hu10965 mutants lacked the TD and ISLVs at 5 days postfertilization; position of the DA and posterior cardinal vein (PCV) are indicated. Lateral views, anterior to the left, and dorsal is up.

(B) Confocal micrographs of Tg(fli1a:egfp)y1 wild-type and flt4um203 sibling embryos at 24 hrpf, 30 hrpf, 2 days postfertilization, and 5 days postfertilization. Positions of the PHBC, ISVs, PLs, and TD are indicated. All of these structures except ISVs are missing in flt4um203 mutants at indicated stages (right). (Bottom) flt4 transcript by whole mount in situ hybridization in wild-type and flt4um203 mutant embryos at 28 hrpf. Lateral views, anterior to the left, and dorsal is up.

Gene Expression Details
Gene Antibody Fish Conditions Stage Anatomy Assay
flt4 WT standard conditions Prim-5 anatomical structure ISH
flt4um203/um203 standard conditions Prim-5 anatomical structure ISH
Antibody Labeling Details No data available
Phenotype Details
Fish Conditions Stage Phenotype
ccbe1hu10965/hu10965 ; hu7135Tg ; hu5333Tg standard conditions Day 5 lymph vessel development disrupted, abnormal
Day 5 thoracic duct absent, abnormal
flt4um203/um203 standard conditions Prim-5 anatomical structure flt4 expression decreased distribution, abnormal
y1Tg ; flt4um203/um203 standard conditions Prim-5 primordial hindbrain channel absent, abnormal
Prim-15 intersegmental vessel morphology, normal
Prim-15 intersegmental vessel present, normal
Long-pec vascular lymphangioblast absent, abnormal
Day 5 lymph vessel development disrupted, abnormal
Day 5 thoracic duct absent, abnormal
