ZFIN ID: ZDB-FIG-130625-39
Schmid et al., 2013 - Loss of ALS-associated TDP-43 in zebrafish causes muscle degeneration, vascular dysfunction, and reduced motor neuron axon outgrowth. Proc. Natl. Acad. Sci. USA   110(13):4986-91 Full text @ Proc. Natl. Acad. Sci. USA
ADDITIONAL FIGURES
EXPRESSION / LABELING:
Genes:
Antibodies:
Fish:
Anatomical Term:
Stage: Adult
PHENOTYPE:
Fish:
Observed In:
Stage: Adult

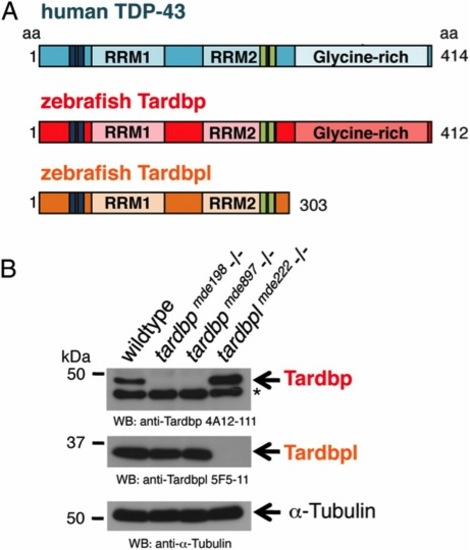

Fig. 1 Overview of human TDP-43 and zebrafish orthologs and Western blot of their loss-of-function alleles. (A) Schematic representation of human TDP-43 (turquois), zebrafish Tardbp (red), and zebrafish Tardbpl protein (orange); blue bars represent nuclear localization sequence; green bars represent nuclear export sequence; RRM, RNA recognition motif. (B, Top) Tardbp specific monoclonal antibody 4A12-111 detects the 43-kDa Tardbp protein in adult brain from wild-type and tardbplmde222-/- but not from tardbpmde198-/- and tardbpmde897-/- fish. Asterisk marks an unspecific band. (Middle) Tardbpl-specific monoclonal antibody 5F5-11 detects the approximately 34-kDa Tardbpl protein in adult brain from wild-type, tardbpmde198-/- and tardbpmde897-/- but not from tardbplmde222-/- fish. (Bottom) α-Tubulin serves as a loading control.

Gene Expression Details
Gene Antibody Fish Conditions Stage Qualifier Anatomy Assay
tardbp Ab5-tardbp AB standard conditions Adult brain WB
Ab5-tardbp tardbpmde198/mde198(AB) standard conditions Adult Not Detected brain WB
Ab5-tardbp tardbpmde897/mde897(AB) standard conditions Adult Not Detected brain WB
Ab5-tardbp tardbplmde222/mde222(AB) standard conditions Adult brain WB
tardbpl Ab1-tardbpl AB standard conditions Adult brain WB
Ab1-tardbpl tardbpmde198/mde198(AB) standard conditions Adult brain WB
Ab1-tardbpl tardbpmde897/mde897(AB) standard conditions Adult brain WB
Ab1-tardbpl tardbplmde222/mde222(AB) standard conditions Adult Not Detected brain WB
Antibody Labeling Details No data available
Phenotype Details
Fish Conditions Stage Phenotype
tardbpmde198/mde198(AB) standard conditions Adult brain tardbp expression absent, abnormal
tardbpmde897/mde897(AB) standard conditions Adult brain tardbp expression absent, abnormal
tardbplmde222/mde222(AB) standard conditions Adult brain tardbpl expression absent, abnormal
