Staudt et al., 2007 - The prethalamus is established during gastrulation and influences diencephalic regionalization

All Figures

Figures for Staudt et al., 2007


Figure Caption

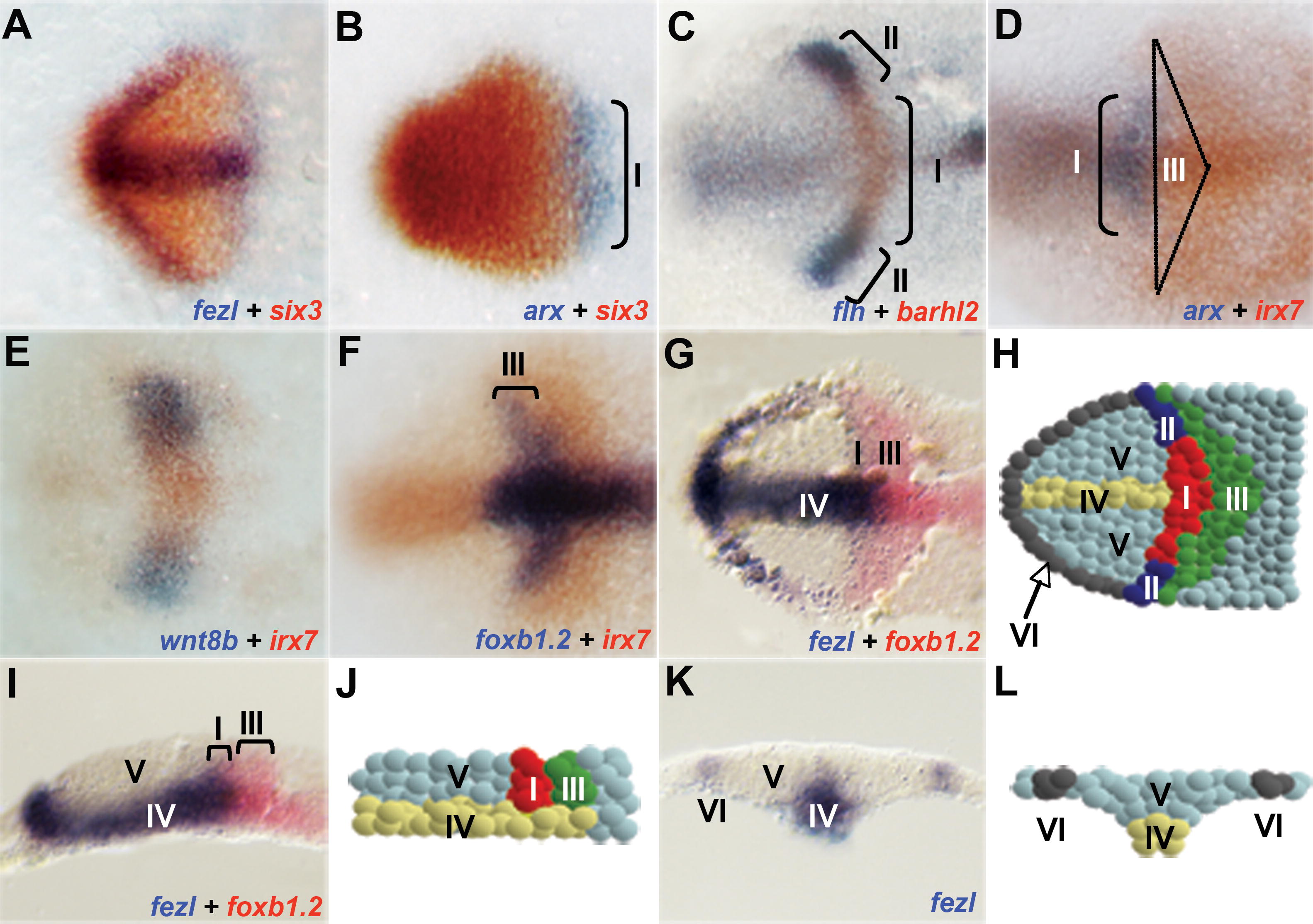

Fig. 1 Expression Profile of the Rostral Neural Plate (A–G) Rostral neural plate, anterior to the left. Embryos at bud stage (A–D, F, G , I, and K) or 100% epiboly (E) are shown. (A) six3 (red), fezl (blue). (B) six3 (red), arx (blue). (C) barhl2 (red), flh (blue). (D) irx7 (red), arx (blue). (E) irx7 (red), wnt8b (blue). (F) irx7 (red), foxb1.2 (blue). (G) foxb1.2 (red), fezl (blue). (H) Scheme of the different expression domains inside the diencephalon anlage shown in (A–G). (I) Sagittal section, anterior left, foxb1.2 (red), fezl (blue). (J) Scheme of (I). (K) Transverse section, fezl (blue). (L) Scheme of (K). The different domains are the presumptive anteromedial (I), anterolateral (II), and posterior (III) diencephalon, hypothalamus (IV), and eye field (V).
