Fig. 1

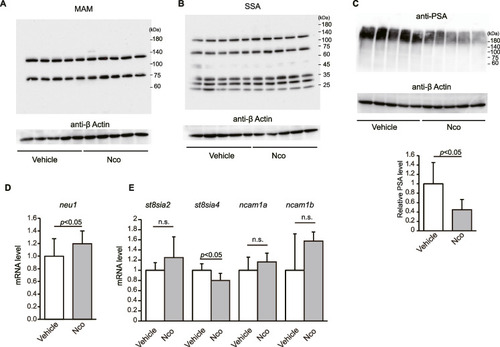

Alterations in the levels of polysialic acid following nicotine exposure in zebrafish brain. A–C Representative lectin blot and immunoblot analyses of zebrafish brain extracts following Nco exposure. A α2,3-linked sialylated glycoproteins detected using lectin from Maackia amurensis (MAM), B α2,6-linked sialylated glycoproteins detected using lectin from Sambucus sieboldiana (SSA), and (C) PSA levels detected by anti-PSA antibody. β-Actin was used as a loading control. The intensities of PSA and β-Actin bands in (C) were quantified, and the results are presented as PSA/β-Actin levels relative to the values in the non-treated zebrafish. n = 5 for each group. D, E Relative mRNA expression levels of (D) neu1 and (E) PSA biosynthesis-related genes (st8sia2, st8sia4, ncam1a, and ncam1b) in zebrafish brains following Nco exposure. Expression levels are normalized to those of ef1α and expressed relative to the vehicle-treated controls. n = 6. n.s., not significant

Expression Data

Genes:	ncam1a ncam1b neu1 st8sia2 st8sia4
Antibody:	Ab1-psa-ncam
Fish:	RW
Condition:	chemical treatment by environment: nicotine
Anatomical Term:	brain
Stage:	Adult

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	RW
Condition:	chemical treatment by environment: nicotine
Observed In:	brain brain polysialic acid
Stage:	Adult

Phenotype Detail
