FIGURE

Figure 2

ID

ZDB-FIG-260218-2

Publication

Dahlgren et al., 2026 - ER-associated degradation pathway protein SEL1L plays an evolutionarily conserved role in platelet adhesion

Other Figures

All Figure Page

Back to All Figure Page

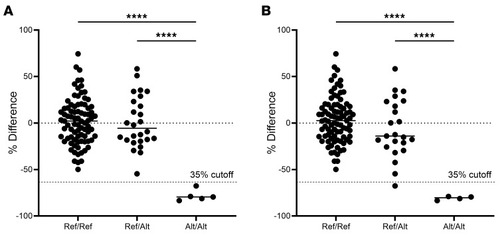

Figure 2

Genotypes of the larger population of phenotyped horses.

Genotypes of the larger population of 114 phenotyped TBs for (A) SEL1L c.1810A>G p.Ile604Val and (B) VIPAS39:g.22685398_22685470del. The y axis is percent difference in fibrinogen binding compared with control horses. The 35% cutoff line characterizing affected horses is indicated by a dashed line. ****P < 0.0001 by 1-way ANOVA.
