Fig. 3

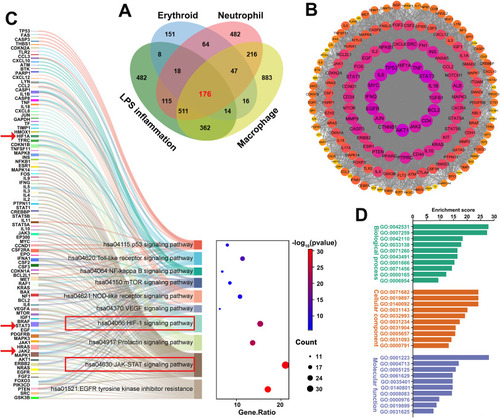

Bioinformatics analysis of LPS-induced erythroid-myeloid hematopoietic differentiation Bias. (A) Venn diagram illustrating the intersection of targets related to LPS, erythroid, neutrophil, and macrophage lineages. (B) Protein-protein interaction (PPI) network of the 176 identified intersecting targets. (C) Enrichment and visualization of 87 genes associated with LPS-induced erythroid-myeloid differentiation bias using a Sankey-KEGG pathway bubble diagram. (D) Bar chart depicting the top 10 enriched GO enrichment analyses associated with LPS-induced erythroid-myeloid differentiation bias.
