Fig. 9

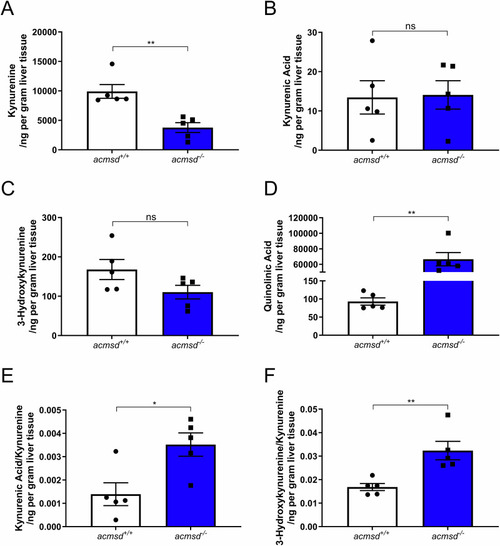

Kynurenine pathway metabolites were altered in acmsd^-/- adult tissues.

In adult liver tissue, kynurenine was reduced in acmsd^-/- zebrafish (A, p = 0.0079, Mann–Whitney test), no difference was identified between genotypes in kynurenic acid (B, p = 0.9125, unpaired, two-tailed t test) or 3-hydroxykynurenine (C, p = 0.0986, unpaired, two-tailed t test), whilst quinolinic acid was increased in acmsd^-/- (D, p = 0.0079, Mann–Whitney test). The kynurenic acid: kynurenine ratio (E, p = 0.0161, unpaired, two-tailed t test) and the 3-hydroxykynurenine:kynurenine ratio (F, p = 0.0063, unpaired, two-tailed t test) were increased in acmsd^-/- fish.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	acmsd^sh619/sh619
Observed In:	liver 3-hydroxykynurenine liver kynurenic acid liver kynurenine liver quinolinic acid
Stage:	Adult
