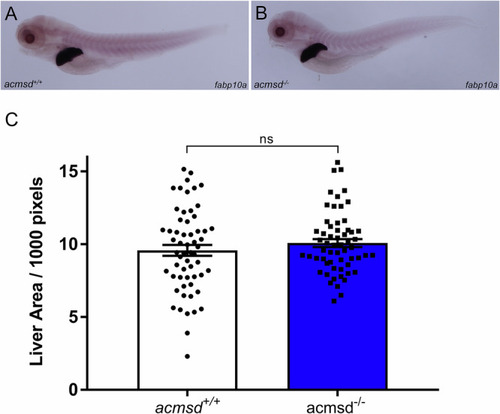

Fig. 4

Liver size does not vary between acmsd^+/+ and acmsd^-/- larvae.

5dpf zebrafish underwent in situ hybridisation against fatty acid-binding protein 10a (fabp10a, A, B, representative images). C There was no difference in liver area identified between genotypes (p = 0.2762, unpaired two-tailed t test). Data from three biological replicates, n = 59 per genotype. Data points represent individual fish.

Expression Data

Gene:	fabp10a
Fish:	WT acmsd^sh619/sh619
Anatomical Term:	liver
Stage:	Day 5

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	acmsd^sh619/sh619
Observed In:	liver
Stage:	Day 5

Phenotype Detail
