Fig. 7

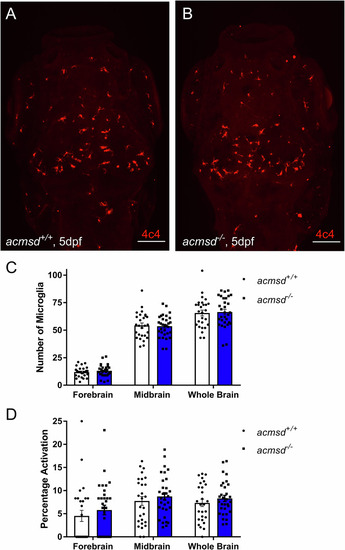

acmsd^-/- zebrafish retain normal numbers and activation of microglia.

Representative images from wholemount immunohistochemistry against 4c4 in acmsd^+/+ (A) and acmsd^-/- (B) siblings at 5dpf (scale bar = 100 µm). C No difference was found in the number of 4c4+ cells between acmsd^+/+ and acmsd^-/- larvae in the forebrain, midbrain, or these combined (whole brain) (p = 0.9827 for forebrain, p = 0.9925 for midbrain, p = 0.9836 for whole brain). D No difference in microglial activation, represented as the percentage of amoeboid cells out of the total 4c4+ cell count, was identified between genotypes (p = 0.6983 for forebrain, p = 0.8307 for midbrain, p = 0.8441 for whole brain). n = 31 acmsd^-/-, 27 acmsd^+/+, from three biological replicates. Statistics analysed by two-way ANOVA with post hoc Sidak’s multiple comparisons test.

Expression Data

Antibody:	Ab-4C4
Fish:	WT acmsd^sh619/sh619
Anatomical Term:	brain microglial cell
Stage:	Day 5

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	acmsd^sh619/sh619
Observed In:	brain microglial cell activation
Stage:	Day 5

Phenotype Detail
