FIGURE

FIGURE 5

ID

ZDB-FIG-250109-291

Publication

Ercanbrack et al., 2024 - Frataxin is essential for zebrafish embryogenesis and pronephros formation

Other Figures

All Figure Page

Back to All Figure Page

FIGURE 5

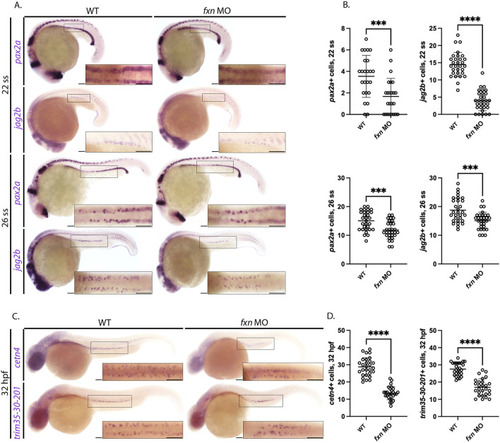

Fxn-deficient zebrafish embryos form reduced multiciliated cell (MCC) progenitors. (A) WISH analysis at the 22 and 26 ss utilizing the probes pax2a and jag2b revealed that the population of MCC progenitors was significantly reduced in fxn morphants compared to wild-type control embryos. Scale bars = 50 um. (B) Unpaired t-test of the corresponding WISH experiments in panel (A). (C) WISH analysis at the 32 hpf time point utilized the probes trim35-30-201 and cetn4, which are expressed by differentiating MCCs, and revealed that MCC numbers were still significantly reduced at this later timepoint. Scale bars = 50 um. Each boxed lateral region in the embryos corresponds to the inset, which shows a dorsal view of that corresponding area. (D) Unpaired t-test of the corresponding WISH experiments in panel (C). ***p < 0.0005, ****p < 0.0001.

Expression Data

Genes:	cetn4 jag2b pax2a trim35-30
Fish:	WT WT + MO1-fxn
Knockdown Reagent:	MO1-fxn
Anatomical Term:	pronephros multi-ciliated epithelial cell
Stage Range:	20-25 somites to Prim-15

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	WT + MO1-fxn
Knockdown Reagent:	MO1-fxn
Observed In:	pronephros multi-ciliated epithelial cell
Stage Range:	20-25 somites to Prim-15

Phenotype Detail
