Fig. 6

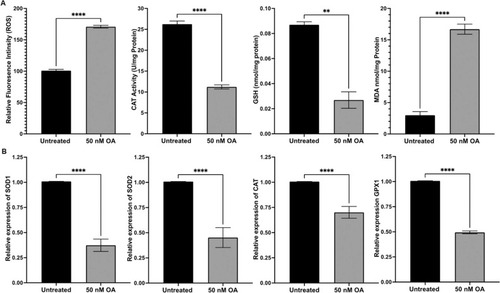

Fig. 6. OA induced effects on antioxidant capacity in zebrafish embryos. (A) ROS production was significantly increased in zebrafish embryos exposed to OA compared to the untreated control group. CAT activity was significantly decreased in zebrafish embryos treated with OA. Total GSH level was markedly decreased, and MDA production was significantly increased in zebrafish embryos treated with OA. (B) Zebrafish embryos exposed to OA had a significant decrease in expression of antioxidant genes at mRNA levels, measured by qRT-PCR and normalized to the housekeeping gene, GAPDH. Data was presented as mean ± SEM (n = 6). * *p < 0.01; * ** *p < 0.0001.

Expression Data

Genes:	cat gpx1a sod1 sod2
Fish:	WT
Condition:	chemical treatment by environment: okadaic acid
Anatomical Term:	whole organism
Stage:	1-cell

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	WT
Condition:	chemical treatment by environment: okadaic acid
Observed In:	catalase activity glutathione biosynthetic process membrane lipid catabolic process reactive oxygen species biosynthetic process whole organism
Stage Range:	1-cell to Day 5

Phenotype Detail
