Fig. 8

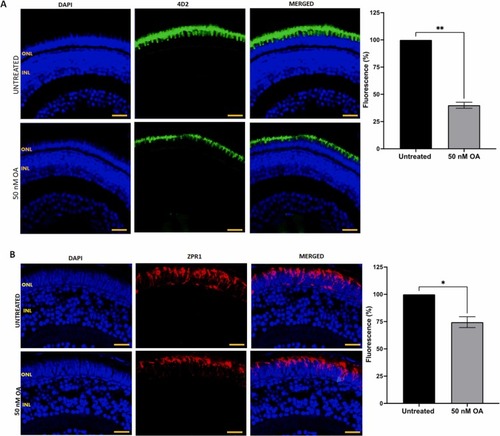

Fig. 8. (A) Detection of rod cells visualization by immunostaining with anti-rhodopsin 4D2 antibody in zebrafish embryos treated with or without 50 nM OA from 24 to 120 hpf. (B) Cone cells were detected by immunostaining with ZPR-1 antibody in retinal sections of zebrafish embryos treated with or without 50 nM OA from 24 to 120hpf. Embryos exposed to OA illustrated a reduction in fluorescence intensity. Five images were taken from untreated and treated zebrafish retinal sections and quantified using Image J software. Data was presented as mean ± SEM (n = 5). * p < 0.05; * * p < 0.01. Scale bar, 20 µm.

Expression Data

Antibodies:	Ab5-rho zpr-1
Fish:	WT
Condition:	chemical treatment by environment: okadaic acid
Anatomical Terms:	retinal cone cell retinal rod cell
Stage:	Day 5

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	WT
Condition:	chemical treatment by environment: okadaic acid
Observed In:	photoreceptor outer segment layer retinal cone cell retinal rod cell
Stage:	Day 5

Phenotype Detail
