FIGURE 8

ID

ZDB-FIG-210518-57

Publication

Wiweger et al., 2021 - npc2-Deficient Zebrafish Reproduce Neurological and Inflammatory Symptoms of Niemann-Pick Type C Disease

Other Figures

All Figure Page

Back to All Figure Page

FIGURE 8

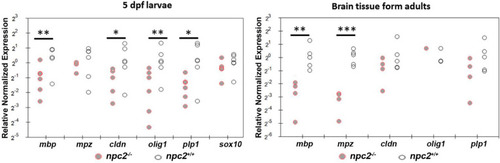

Decrease in myelination in npc2-deficient larvae and adult fish. Scatter plots show the normalized expression of selected genes in 5 dpf larvae and in the brain in npc^–/– and wildtype zebrafish. Each circle corresponds to one zebrafish. The 18S ribosomal gene was used as a reference. At least three samples were analyzed. ***p < 0.001; **p < 0.01; and *p < 0.05.

Expression Data

Genes:	cldnk mbpa mpz olig1 plp1b sox10
Fish:	TL npc2.1^{waw302/waw302} (TL)
Anatomical Terms:	brain whole organism
Stage Range:	Day 5 to Adult

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	npc2.1^{waw302/waw302} (TL)
Observed In:	brain brain myelination whole organism whole organism myelination
Stage Range:	Day 5 to Adult

Phenotype Detail
