FIGURE 4

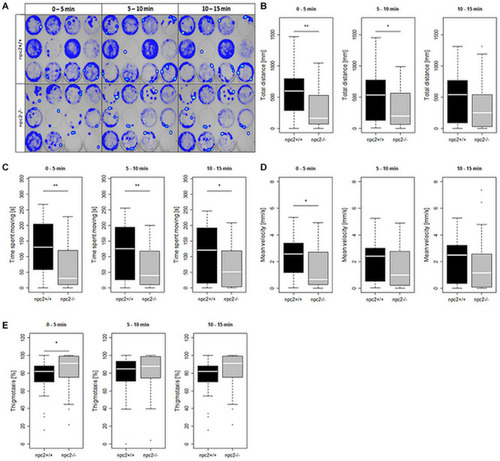

Decrease in mobility and increase in thigmotaxis in npc2^–/– larvae. (A) Heatmaps of mean traces of npc2^+/+ and npc2^–/– larvae during each 5 min period. (B–E) Boxplots of total distance traveled, time spent moving, mean velocity, and thigmotaxis in npc2^+/+ and npc2^–/– larvae. (E) *p < 0.05 and **p < 0.01.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	npc2.1^{waw302/waw302} (TL)
Observed In:	whole organism locomotory behavior whole organism thigmotaxis
Stage:	Day 5

Phenotype Detail
