Fig. 3

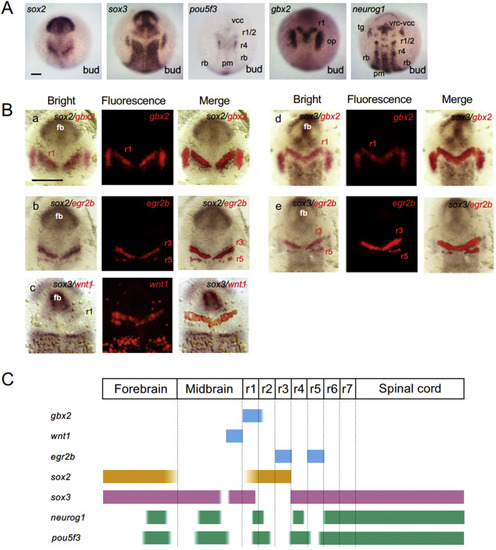

Localization of the proneural clusters and soxB1 regions in the neural plate. A. Expression of soxB1, pou5f3, gbx2, and neurog1 at the bud stage revealed by single-color WISH. B. Comparison of the gene expression patterns by two-color WISH. The expression domains of two specified genes are stained brown and red. The bright-field views (left), epifluorescence views (middle), and merged views (right) are shown for each of the gene pairs examined. fb, forebrain. For the other abbreviations, see the legend for Fig. 1. Scale bars, 100 μm. C. Schematic views of the expression domains of brain regional marker genes, soxB1, and neurog1/pou5f3.

Expression Data

Genes:	egr2b gbx2 pou5f3 sox2 sox3
Fish:	WT
Anatomical Terms:	forebrain neural keel hindbrain neural keel midbrain hindbrain boundary neural keel midbrain neural keel presumptive rhombomere 1 presumptive rhombomere 2 presumptive rhombomere 3 presumptive rhombomere 4 presumptive rhombomere 5 spinal cord neural keel
Stage:	Bud
