ZFIN Image: Inomata et al., 2019, Fig. 3


Figure Caption

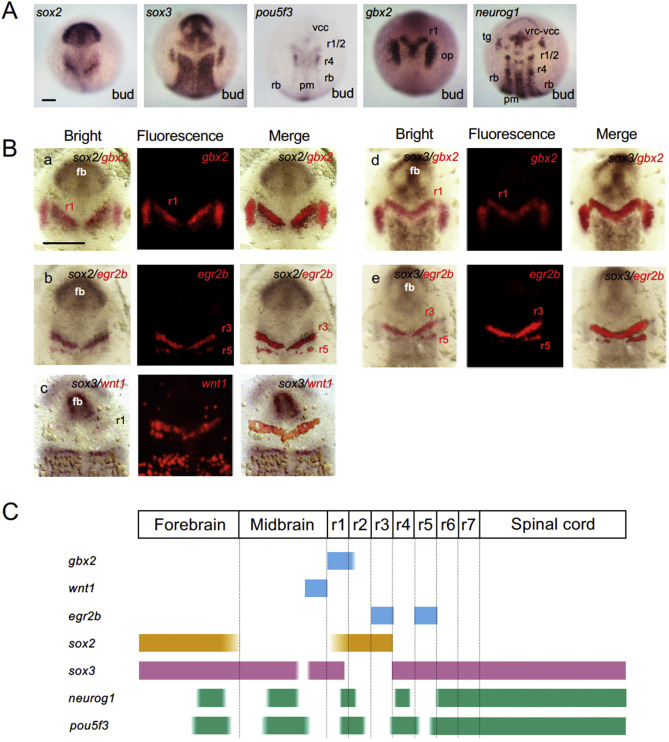

Fig. 3 Localization of the proneural clusters and soxB1 regions in the neural plate. A. Expression of soxB1, pou5f3, gbx2, and neurog1 at the bud stage revealed by single-color WISH. B. Comparison of the gene expression patterns by two-color WISH. The expression domains of two specified genes are stained brown and red. The bright-field views (left), epifluorescence views (middle), and merged views (right) are shown for each of the gene pairs examined. fb, forebrain. For the other abbreviations, see the legend for Fig. 1. Scale bars, 100 μm. C. Schematic views of the expression domains of brain regional marker genes, soxB1, and neurog1/pou5f3.

Figure Data

Expression / Labeling details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 457(1), Inomata, C., Yuikawa, T., Nakayama-Sadakiyo, Y., Kobayashi, K., Ikeda, M., Chiba, M., Konishi, C., Ishioka, A., Tsuda, S., Yamasu, K., Involvement of an Oct4-related PouV gene, pou5f3/pou2, in neurogenesis in the early neural plate of zebrafish embryos, 30-42, Copyright (2019) with permission from Elsevier. Full text @ Dev. Biol.
