Fig. 1

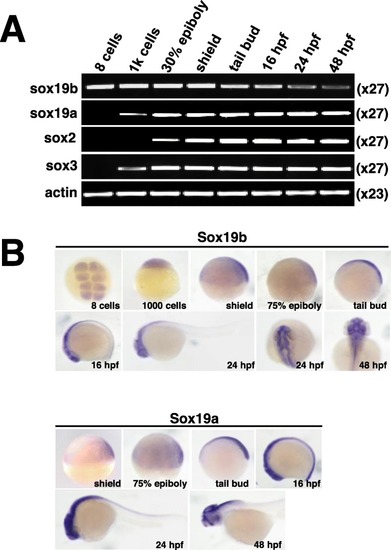

Expression of the SoxB1 family of genes during zebrafish embryonic development. a RT-PCR was used to analyse the expression level of the SoxB1 family of genes during zebrafish developmental stages, ranging from 8 cells to 48 hpf. b Expression analysis of Sox19b and Sox19a in zebrafish was determined by whole-mount in situ hybridization at the indicated stages (from 8 cells to 48 hpf)

Expression Data

Genes:	sox2 sox3 sox19a sox19b
Fish:	WT
Anatomical Terms:	brain neural plate neural rod neural tube presumptive neural plate whole organism
Stage Range:	8-cell to Long-pec

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail
