Fig. 7

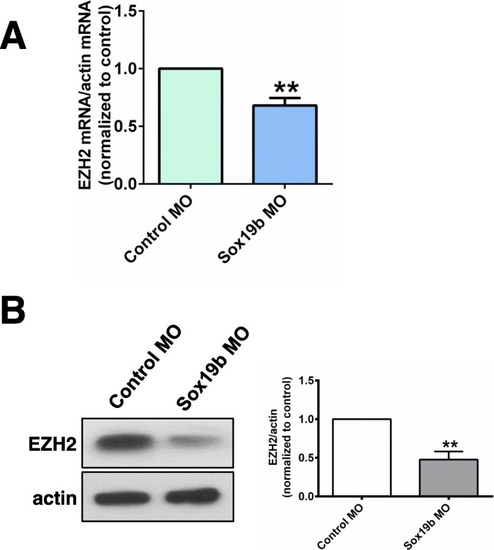

Sox19b regulated NSCs through EZH2. a Quantitative RT-PCR analysis is shown for EZH2. Compared with the controls, the mRNA level of EZH2 in Sox19b MO-injected embryos decreased significantly. b Western blot analysis of EZH2 protein levels in control and Sox19b MO-injected embryos. The protein level of EZH2 decreased after knocking down of Sox19b. Data represent the mean of at least three independent experiments ± SD. **P < 0.01 versus control

Expression Data

Gene:	ezh2
Fish:	WT WT + MO6-sox19b WT + MO7-sox19b
Knockdown Reagents:	MO6-sox19b MO7-sox19b
Anatomical Term:	whole organism
Stage Range:	Bud to 1-4 somites

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	WT + MO6-sox19b WT + MO7-sox19b
Knockdown Reagents:	MO6-sox19b MO7-sox19b
Observed In:	whole organism
Stage Range:	Bud to 1-4 somites

Phenotype Detail
