FIGURE

Fig. 5

ID
ZDB-FIG-190723-86
Publication
Yang et al., 2019 - Cul4a promotes zebrafish primitive erythropoiesis via upregulating scl and gata1 expression
Other Figures
All Figure Page
Back to All Figure Page
Fig. 5

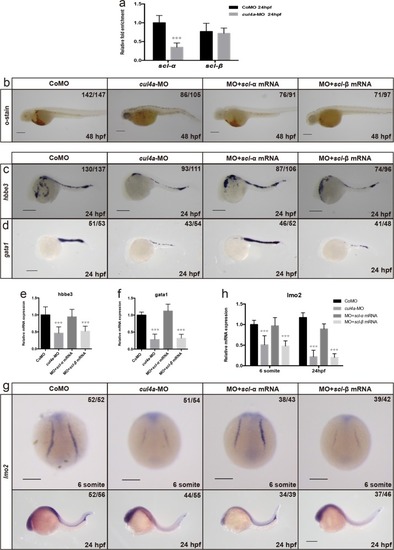

Impaired primitive erythropoiesis caused by <italic>cul4a</italic> knockdown is mediated by downregulated expression of <italic>scl</italic>.

a The relative expression of the two isoforms of scl, scl-α and scl-β, were measured by qRT-PCR in embryos injected with CoMO or cul4a-MO. bo-dianisidine staining showed depletion of erythroid cells in cul4a-morphant embryos compared with controls. Zebrafish scl-α, but not scl-β, mRNA rescued the reduction in primitive erythropoiesis of cul4a-morphant embryos. c, d WISH was performed with gata1 or hbbe3 probes in 24 hpf embryos injected with CoMO or cul4a-MO, or MO coinjected with zebrafish scl-α or scl-β mRNA. e, f Relative expression of gata1 or hbbe3 in embryos injected with CoMO or cul4a-MO, or MO coinjected with zebrafish scl-α or scl-β mRNA at 24 hpf. g WISH was performed with lmo2 probes in embryos at 6 somite and 24 hpf, respectively. Reduced expression of lmo2 in cul4a-morphant embryos were rescued by coinjection of zebrafish scl-α, but not scl-β mRNA. h Relative expression of lmo2 was measured by qRT-PCR in embryos injected with CoMO or cul4a-MO, or MO coinjected with zebrafish scl-α or scl-β mRNA at 6 somite and 24 hpf. The number in the top right-hand corner indicates the phenotypic embryos/total embryos. qRT-PCR experiments were performed in triplicate. ***p < 0.001. All scale bars represent 250 μm

Expression Data
Genes:
Fish:
Knockdown Reagent:
Anatomical Terms:
Stage Range: 5-9 somites to Prim-5

Expression Detail
Antibody Labeling
Phenotype Data
Fish:
Knockdown Reagent:
Observed In:
Stage Range: 5-9 somites to Long-pec

Phenotype Detail
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Cell Death Dis.
