FIGURE

Fig. 2.

ID
ZDB-FIG-190723-1980
Publication
Reuter et al., 2019 - Fgf3 is crucial for the generation of monoaminergic cerebrospinal fluid contacting cells in zebrafish
Other Figures
All Figure Page
Back to All Figure Page

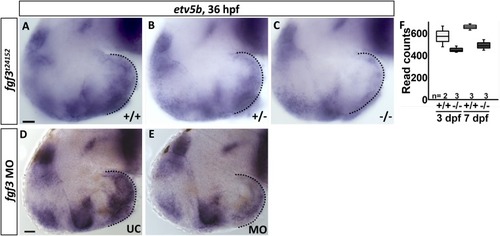

Fig. 2.

fgf3t24152 mutants and fgf3 morphants exhibit a reduced expression of etv5b in the posterior hypothalamus. (A–E) Light microscopic pictures of wild type (+/+), heterozygous (+/−) and homozygous (−/−) fgf3t24152 mutant siblings, and uninjected control (UC) and fgf3 morphant (MO) siblings processed for RNA in situ hybridisation for etv5b at 36 hpf. Dotted line indicates posterior hypothalamus where etv5b is expressed. Notably, the hypothalamic etv5b expression is weaker in +/− than in +/+ embryos, and strongly reduced in −/− embryos. Similarly, etv5b expression is weaker in MO embryos than in UC embryos. Lateral views, anterior to the left. Scale bars: 30 µm. (F) Read counts of etv5b obtained by RNA sequencing of dissected hypothalami of +/+ and fgf3t24152 −/− mutants at 3 and 7 dpf. Tukey boxplots show median, 25–75% percentile, IQR whiskers and outliers. n=number of analysed replicates.

Expression Data
Gene:
Fish:
Knockdown Reagent:
Anatomical Term:
Stage: Prim-25

Expression Detail
Antibody Labeling
Phenotype Data
Fish:
Knockdown Reagent:
Observed In:
Stage: Prim-25

Phenotype Detail
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Biol. Open
