Fig. S2

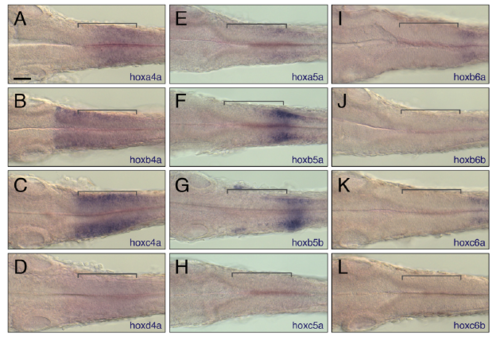

Expression of hox genes in rhombomere 8. Related to Figure 3. (A-L) RNA in situ hybridization at 27 hpf showing hox gene expression in purple. Brackets indicate mX territory. hoxa5a, hoxb5a, and hoxb5b are all expressed in posterior but not anterior r8. Dorsal view with anterior left, scale bars 50 um.

Expression Data

Genes:	hoxa4a hoxa5a hoxb4a hoxb5a hoxb5b hoxb6a hoxb6b hoxc4a hoxc5a hoxc6a hoxc6b hoxd4a
Fish:	WT
Anatomical Terms:	rhombomere 8 rhombomere 8 posterior region
Stage:	Prim-5
