Fig. 7

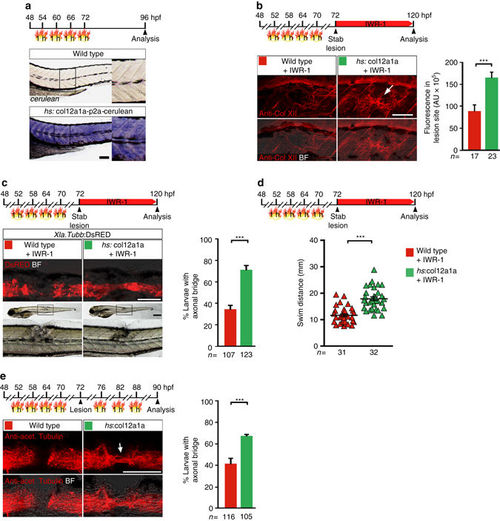

Overexpression of col12a1a promotes axon regeneration in Wnt/?-catenin pathway-inhibited and wild type zebrafish larvae. a cerulean mRNA is robustly detectable 24?h after the last heat shock in hs:col12a1a-p2a-Cerulean transgenic larvae. b col12a1a overexpression increases anti-Col XII immunoreactivity in the lesion site of Wnt/?-pathway-inhibited (IWR-1 treatment) hs:col12a1a transgenic larvae (arrow; t-test: ***P?<?0.001). c col12a1a overexpression rescues axon regeneration in Wnt/?-catenin pathway-inhibited (IWR-1 treatment) hs:col12a1a transgenic larvae (Fischer?s exact test: ***P?<?0.001). d col12a1a overexpression improves functional recovery in Wnt/?-catenin pathway-inhibited (IWR-1 treatment) hs:col12a1a transgenic larvae (t-test: ***P?<?0.001). e col12a1a overexpression is sufficient to augment axon regeneration (Fischer?s exact test: ***?P<?0.001). a?e Views are lateral (dorsal is up, rostral is left). BF: brightfield. Scale bars: 200?�m c and 100?�m a?c, e. Error bars indicate s.e.m

Expression Data

Genes:	Cerulean DsRed
Fish:	ue104Tg zf148Tg ue104Tg; zf148Tg
Conditions:	heat shock chemical treatment by environment: IWR-1-endo, heat shock, perforation: spinal cord
Anatomical Terms:	regenerating tissue axon whole organism
Stage Range:	Day 4 to Day 5
