Fig. 6

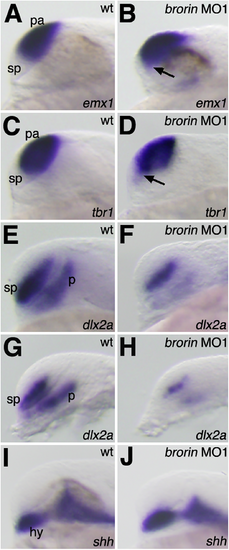

Telencephalic and diencephalic gene expression in brorin morphants.

(A-D) The expression of emx1 (A, B) and tbr1 (C, D) in wild-type embryos (A, C) and brorin morphants (B, D) at 24 hpf. Arrows in panels B and D indicate the ectopic expression of emx1 or tbr1 in the subpallial domain of the telencephalon. (E-H) The expression of dlx2a in wild-type embryos (E, G) and brorin morphants (F, H) at 8 (G, H) and 24 (E, F) hpf. (I, J) The expression of shh in wild-type embryos (I) and brorin morphants (J) at 24 hpf. hy, hypothalamus; p, prethalamus; pa, pallial telencephalon; sp, subpallial telencephalon.

Expression Data

Genes:	dlx2a emx1 shha tbr1b
Fish:	WT WT + MO1-vwc2
Knockdown Reagent:	MO1-vwc2
Anatomical Terms:	dorsal telencephalon floor plate hypothalamus ventral telencephalon ventral thalamus
Stage Range:	14-19 somites to Prim-5

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	WT + MO1-vwc2
Knockdown Reagent:	MO1-vwc2
Observed In:	dorsal telencephalon forebrain morphogenesis ventral telencephalon ventral telencephalon forebrain morphogenesis ventral thalamus ventral thalamus forebrain morphogenesis
Stage Range:	14-19 somites to Prim-5

Phenotype Detail
