ZFIN ID: ZDB-FIG-161027-13
Cox et al., 2016 - Selenoprotein H is an essential regulator of redox homeostasis that cooperates with p53 in development and tumorigenesis. Proceedings of the National Academy of Sciences of the United States of America   113(38):E5562-71 Full text @ Proc. Natl. Acad. Sci. USA
ADDITIONAL FIGURES
EXPRESSION / LABELING:
Gene:
Antibody:
Fish:
Anatomical Term:
Stage: Day 5
PHENOTYPE:
Fish:
Conditions:
Observed In:
Stage Range: Day 5 to Days 7-13

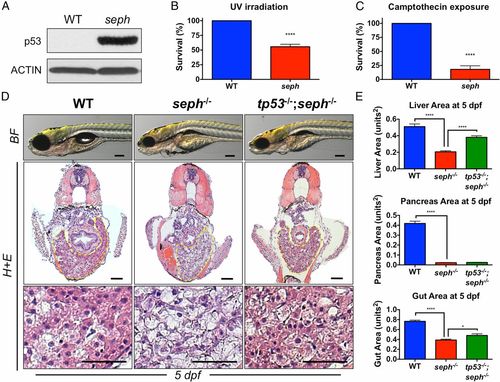

Fig. 5

seph mutants are sensitive to DNA damage. (A) Immunoblot analysis of p53 expression in WT and seph mutant larvae at 5 dpf. (B) Survival of WT and seph mutant larvae 2 dpe to UV irradiation (200 J/m2, 7 dpf). n = 7. ****P < 0.0001. (C) Survival of WT and seph mutant larvae 2 dpe to camptothecin (1 µM). n = 10. ****P < 0.0001. (D) Morphological and histological analysis of WT, seph-/- and tp53-/-;seph-/- mutant larvae at 5 dpf. The yellow dashed region represents the liver. The region of histology showing the larval liver is shown in the zoomed images. [Scale bars: 200 µm (brightfield; BF) and 50 µm (histology; H+E).] (E) Quantitative analysis of liver, pancreas, and gut area in WT, seph-/-, and tp53-/-;seph-/- mutant larvae at 5 dpf. n > 8. *P < 0.05; ****P < 0.0001.

Gene Expression Details
Gene Antibody Fish Conditions Stage Anatomy Assay
tp53 Ab11-tp53 AB standard conditions Day 5 whole organism WB
Ab11-tp53 selenohhi2737Tg/hi2737Tg standard conditions Day 5 whole organism WB
Antibody Labeling Details No data available
Phenotype Details
Fish Conditions Stage Phenotype
selenohhi2737Tg/hi2737Tg standard conditions Day 5 eye decreased size, abnormal
Day 5 gut decreased size, abnormal
Day 5 hepatocyte apoptotic, abnormal
Day 5 hepatocyte ballooning, abnormal
Day 5 liver decreased size, abnormal
Day 5 pancreas decreased size, abnormal
Day 5 whole organism tp53 expression increased amount, abnormal
selenohhi2737Tg/hi2737Tg chemical treatment: camptothecin Days 7-13 DNA damage response, detection of DNA damage process quality, abnormal
Days 7-13 whole organism dead, abnormal
Days 7-13 whole organism decreased life span, abnormal
selenohhi2737Tg/hi2737Tg ultraviolet light Days 7-13 DNA damage response, detection of DNA damage process quality, abnormal
Days 7-13 whole organism dead, abnormal
Days 7-13 whole organism decreased life span, abnormal
tp53zdf1/zdf1; selenohhi2737Tg/hi2737Tg standard conditions Day 5 eye size, ameliorated
Day 5 gut size, ameliorated
Day 5 hepatocyte apoptotic process process quality, ameliorated
Day 5 hepatocyte morphology, ameliorated
Day 5 liver size, ameliorated
Day 5 pancreas decreased size, abnormal
