Fig. 2

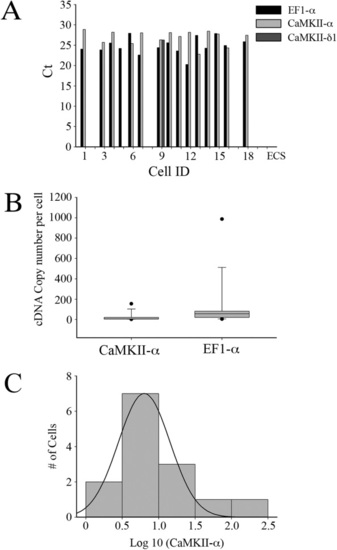

Zebrafish M-cells express CaMKII-α. (A) Ct values of genes expressed in individual M-cell. An arbitrary Ct value of 0 was assigned when any particular gene was undetectable. Note that only one cell (ID: 9) expressed CaMKII-δ1 at detectable level. The control sample consisted of extracellular fluid (ECS) taken from a region surrounding the M-cell. (B) Box plot of quantified copy number of CaMKII-α and EF1-α in single M-cells. The median and 10, 25, 75, and 90 percentiles are plotted. (C) Log-normal distribution of CaMKII-α cDNA.

Expression Data

Genes:	camk2a camk2b1 camk2b2 camk2d1 camk2d2 camk2g1 camk2g2 (all 7)
Fish:	WT
Anatomical Term:	Mauthner neuron
Stage:	Long-pec

Expression Detail

Gene	Fish	Conditions	Stage	Qualifier	Anatomy	Assay
camk2a	WT	standard conditions	Long-pec		Mauthner neuron	RTPCR
camk2b1	WT	standard conditions	Long-pec	Not Detected	Mauthner neuron	RTPCR
camk2b2	WT	standard conditions	Long-pec	Not Detected	Mauthner neuron	RTPCR
camk2d1	WT	standard conditions	Long-pec		Mauthner neuron	RTPCR
camk2d2	WT	standard conditions	Long-pec	Not Detected	Mauthner neuron	RTPCR
camk2g1	WT	standard conditions	Long-pec	Not Detected	Mauthner neuron	RTPCR
camk2g2	WT	standard conditions	Long-pec	Not Detected	Mauthner neuron	RTPCR

1 - 7 of 7

Show

Antibody Labeling

Phenotype Data

Phenotype Detail

No data available
