Fig. 8

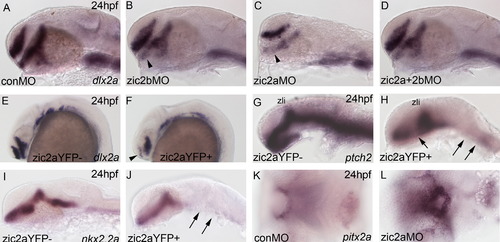

Zebrafish Zic2 patterns the ventral forebrain primordium. Embryos stained by ISH for dlx2a, nkx2.2a, and ptch2 at 24 hpf and pitx2a at 3 dpf. (A) Dlx2a marks the telencephalon, prethalamus and hypothalamus in the developing forebrain of control morphants (42/44, 3 exp.). (B) Zic2b knockdown reduces dlx2a staining in the prethalamus (18/35, 3 exp., see arrowhead). (C) Zic2a knockdown reduces dlx2a in the prethalamus and hypothalamus, as previously described (see Sanek and Grinblat, 2008; 39/43, 3 exp.). (D) Double zic knockdown causes patterning defects similar to single Zic2a knockdown (46/46, 3 exp.). (E,F) Zic2aYFP induction at 10 hpf strongly reduces dlx2a expression in the telencephalon (arrowhead in F) and hypothalamus (61/92, 4 exp.). (G,H) Ptch2 expression is ablated in the hindbrain and spinal cord and reduced in the medial diencephalon of Zic2aYFP-expressing embryos, but maintained in the ZLI (49/57, 2 exp., see arrows in H). (I,J) Zic2aYFP induction between 10 and 11 hpf ablates nkx2.2a expression in the hindbrain (35/35 embryos, 2 exp., arrows in J). (K,L) The stomodeum of zic2a morphants is decreased in size (55/56, 4 exp.). (A–J) are lateral views, (K, L) are ventral views, anterior to the left. Abbreviations: zli—zona limitans intrathalamica.

Expression Data

Genes:	dlx2a nkx2.2a pitx2 ptch2
Fish:	WT WT + MO2-zic2b WT + MO3-zic2a uw6Tg; vu22Tg WT + MO2-zic2b + MO3-zic2a
Condition:	heat shock
Knockdown Reagents:	MO2-zic2b MO3-zic2a
Anatomical Terms:	forebrain ventro-medial region hindbrain ventro-medial region hypothalamus spinal cord stomodeum telencephalon ventral thalamus zona limitans intrathalamica
Stage Range:	Prim-5 to Protruding-mouth

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	WT + MO2-zic2b WT + MO3-zic2a uw6Tg; vu22Tg WT + MO2-zic2b + MO3-zic2a
Condition:	heat shock
Knockdown Reagents:	MO2-zic2b MO3-zic2a
Observed In:	forebrain development hindbrain hypothalamus stomodeum telencephalon ventral thalamus
Stage Range:	Prim-5 to Protruding-mouth

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 380(1), Teslaa, J.J., Keller, A.N., Nyholm, M.K., and Grinblat, Y., Zebrafish Zic2a and Zic2b regulate neural crest and craniofacial development, 73-86, Copyright (2013) with permission from Elsevier. Full text @ Dev. Biol.
