Fig. S5

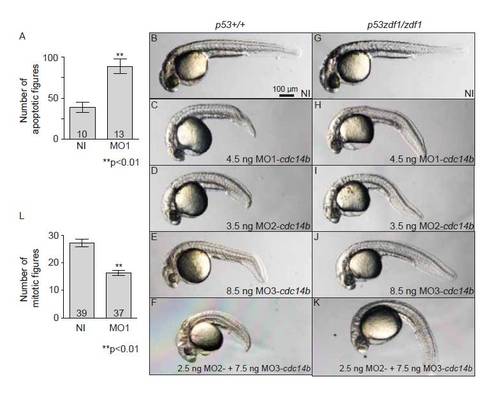

Cdc14B loss-of-function effect on cell death and cell proliferation. (A) Number of apoptotic figures in the tail of non-injected or MO1-cdc14b-injected embryos at 27 hpf. (B-K) NI and MO1-cdc14b injected embryos at 31 hpf in tp53^+/+ (B-F) and tp53^zdf1/zdf1 homozygous mutant (G-K) background. (L) Number of mitotic figures in the tail of non-injected or MO1-cdc14b injected embryos at 27 hpf. The numbers of embryos analyzed are indicated. Data are represented as mean±s.e.m. Statistics were carried out using Student′s t-test.
