Fig. 5

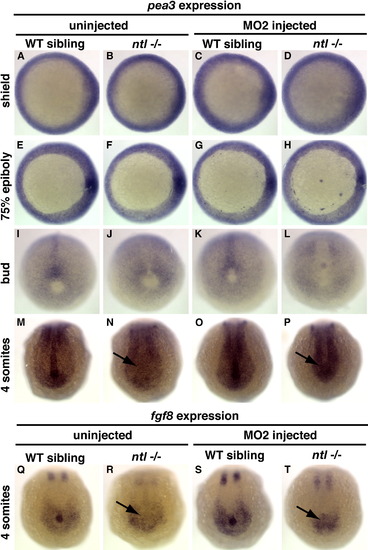

Paraxial FGF Signaling Is Maintained in ntl/bra Embryos

(A–P) pea3 and (Q–T) fgf8 expression at the indicated stages in uninjected and MO2-injected wild-type siblings and ntl mutants. Embryos are shown from an (A–D) animal view with dorsal to the right, (E–H) vegetal view with dorsal to the right, and (I–T) posterior view with dorsal to the top. Arrow marks the posterior notochord.

Expression Data

Genes:	etv4 fgf8a
Fish:	WT tbxta^b195/b195 WT + MO2-tbxtb tbxta^b195/b195 + MO2-tbxtb
Knockdown Reagent:	MO2-tbxtb
Anatomical Terms:	axial mesoderm margin paraxial mesoderm
Stage Range:	Shield to 1-4 somites

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Cell, 15(1), Martin, B.L., and Kimelman, D., Regulation of canonical Wnt signaling by Brachyury is essential for posterior mesoderm formation, 121-133, Copyright (2008) with permission from Elsevier. Full text @ Dev. Cell
