ZFIN ID: ZDB-FIG-080715-47
Martin et al., 2008 - Regulation of canonical Wnt signaling by Brachyury is essential for posterior mesoderm formation. Developmental Cell   15(1):121-133 Full text @ Dev. Cell
ADDITIONAL FIGURES
EXPRESSION / LABELING:
Genes:
Fish:
Knockdown Reagent:
Anatomical Terms:
Stage Range: Shield to 1-4 somites

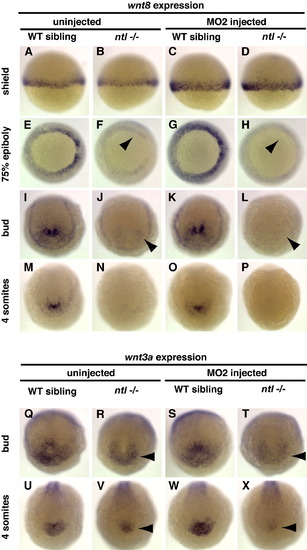

Fig. 6 Ntl/Bra Maintains wnt8 and wnt3a Expression

(A-P) wnt8 and (Q-X) wnt3a expression at the indicated stages in uninjected and MO2-injected wild-type siblings and ntl mutants. Embryos are shown from a (A–D) ventral view with animal pole to the top, (E-H) vegetal view with dorsal to the right, and (I-X) posterior view with dorsal to the top. Arrowheads mark wnt expression domains. What appears to be very light staining around the edge of the embryo in (H) is caused by an edge effect and is not specific.

Gene Expression Details
Gene Antibody Fish Conditions Stage Qualifier Anatomy Assay
wnt3a WT standard conditions 1-4 somites paraxial mesoderm ISH
Bud paraxial mesoderm ISH
WT + MO2-tbxtb standard conditions 1-4 somites paraxial mesoderm ISH
Bud paraxial mesoderm ISH
tbxtab195/b195 standard conditions 1-4 somites paraxial mesoderm ISH
Bud paraxial mesoderm ISH
tbxtab195/b195 + MO2-tbxtb standard conditions 1-4 somites paraxial mesoderm ISH
Bud paraxial mesoderm ISH
wnt8a WT standard conditions Shield margin ISH
75%-epiboly margin ISH
1-4 somites mesoderm ISH
Bud mesoderm ISH
WT + MO2-tbxtb standard conditions Shield margin ISH
75%-epiboly margin ISH
Bud mesoderm ISH
1-4 somites mesoderm ISH
tbxtab195/b195 standard conditions Shield margin ISH
75%-epiboly margin ISH
1-4 somites mesoderm ISH
Bud mesoderm ISH
tbxtab195/b195 + MO2-tbxtb standard conditions Shield margin ISH
75%-epiboly Not Detected margin ISH
Bud Not Detected mesoderm ISH
1-4 somites Not Detected mesoderm ISH
Antibody Labeling Details No data available
Phenotype Details No data available
