Fig. S1

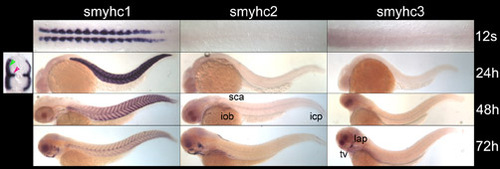

Onset of Smyhc gene expression in different muscles. ISH with smyhc1 (1 to 249 bp), smyhc2 (1 to 155 bp) or smyhc3 (1 to 129 bp) probes. Flat mounts of 12-somite stage embryos show adaxial cells express smyhc1 but not smyhc2 or smyhc3. Lateral views at 24 hpf, 48 hpf and 72 hpf show that smyhc2 is expressed from 48 hpf in the sca, iob and icp/scp, and smyhc3 is expressed in certain craniofacial muscles from 72 hpf. Transverse section of 24 hpf posterior trunk with smyhc1 (1 to 249 bp). ISH shows expression in the superficial slow fibres (green arrow) and muscle pioneers (pink arrow). Abbreviations: icp, infracarinalis posterior; iob, inferior obliquus; lap, levator arcus palatini; sca, supracarinalis anterior; scp, supracarinalis posterior; tv, transversus ventralis.

Expression Data

Genes:	smyhc1 smyhc2 smyhc3
Fish:	WT
Anatomical Terms:	adaxial cell caudal oblique cephalic musculature infracarinalis muscle muscle pioneer slow muscle cell supracarinalis
Stage Range:	10-13 somites to Protruding-mouth

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail
