Fig. 5

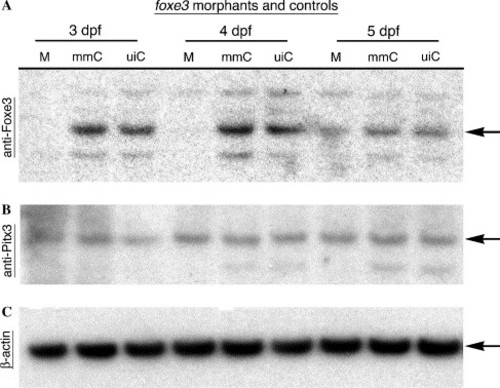

Immunoblot analysis of morpholino-mediated Foxe3 knockdown. Protein was extracted from foxe3 morphants and controls for immunodetection using anti-Foxe3, anti-Pitx3 or anti-β-actin serum. At 3 and 4 dpf, Foxe3 protein is not detected in the morphants (M), while wild-type Foxe3 levels are expressed in the mismatch control morpholino-injected (mmC) and uninjected (uiC) controls. At 5 dpf, nearly equivalent amounts of Foxe3 are detected in the foxe3 morphant and both controls. In comparison, the foxe3 morphants express wild-type levels of both Pitx3 and β-actin at all three ages.

Expression Data

Genes:	foxe3 pitx3
Fish:	WT WT + MO1-foxe3
Knockdown Reagent:	MO1-foxe3
Anatomical Term:	whole organism
Stage Range:	Protruding-mouth to Day 5

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail
