Fig. 3

Liu et al., 2017 - Deficient Cholesterol Esterification in Plasma of apoc2 Knockout Zebrafish and Familial Chylomicronemia Patients
Other Figures
All Figure Page
Back to All Figure Page
Fig. 3

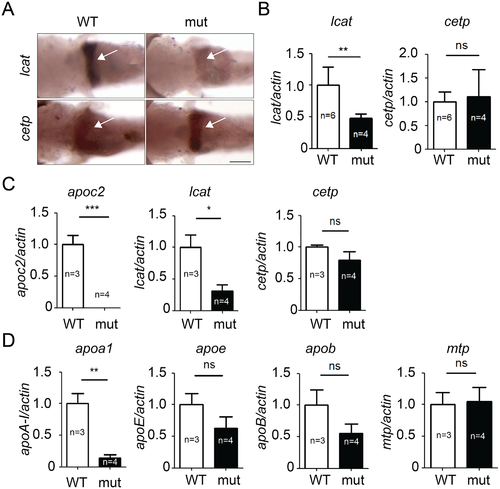

Expression of lcat, but not cetp, is significantly decreased in apoc2 mutant zebrafish.

In situ hybridization (A) and qPCR (B) results showing lcat and cetp mRNA expression in 5.3 dpf zebrafish embryos. mRNA expression of apoc2, lcat and cetp (C) and apoa1, apoe, apob and mtp (D) in adult zebrafish liver. Results are mean±s.e.m.; numbers of biological replicates are indicated on the graphs; *P<0.05, **P<0.01 and ***P<0.001 (Student’s t-test).

Expression Data
Anatomical Terms:
Stage Range: Day 5 to Adult

Expression Detail
Antibody Labeling
Phenotype Data
Observed In:
Stage Range: Day 5 to Adult

Phenotype Detail
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ PLoS One
