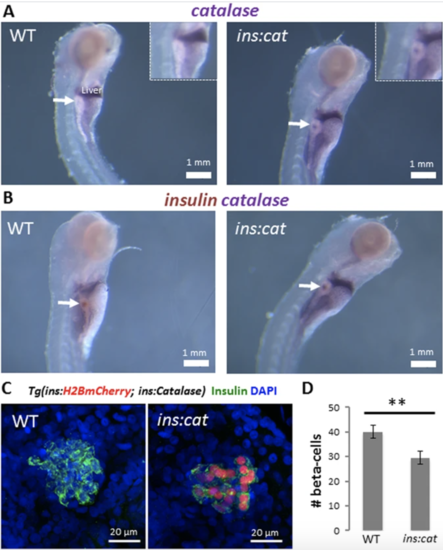

Catalase expression in beta-cells leads to a reduction in beta-cell numbers in larvae. (A) Whole mount in situ hybridization (WISH) for catalase in WT and Tg(ins:catalase;ins:H2BmCherry) larvae at 5 dpf. Arrows point to the principal islet. Catalase expression was not detected in the beta-cells of WT larvae whereas Tg(ins:catalase;ins:H2BmCherry) larvae exhibit catalase transcripts. (B) Double WISH for insulin (brown) and catalase (purple) showing overlap between the insulin and catalase transcripts in Tg(ins:catalase;ins:H2BmCherry) siblings. (C) Confocal projections of the principal islets of 4 dpf WT and Tg(ins:catalase;ins:H2BmCherry) larvae. (D) Quantification of the average number of beta-cell in WT (n = 15 larvae) and Tg(ins:catalase;ins:H2BmCherry) larvae (n = 12 larvae). Tg(ins:catalase;ins:H2BmCherry) larvae exhibit a reduced beta-cell number compared to WT (p = 0,008, error bars = SEM).

Different levels of H₂O₂ induce beta-cell proliferation and quiescence. (A) Quantification of the number of Tg(ins:FUCCI-S/G2/M)⁺ beta-cells after continuous treatment with increasing concentrations of H₂O₂ from 3 to 4 dpf. The treatment with 50 μM H₂O₂ (n = 89 larvae) increased the number of Tg(ins:FUCCI-S/G2/M)⁺ beta-cells compared to controls (n = 104 larvae) (p = 0.025) whereas the treatments with 500 and 1000 μM H₂O₂ decreased the number of Tg(ins:FUCCI-S/G2/M)⁺ beta-cells (n = 38 larvae for 500 H₂O₂ μM; n = 63 larvae for controls; p = 0.03) (n = 46 larvae for 1000 μM H₂O₂; n = 78 larvae for controls; p = 0.0004). (B) Quantification of the number of Tg(ins:FUCCI-S/G2/M)⁺ beta-cells in 3 dpf larvae treated with increasing concentrations of H₂O₂ for 1.5 hours followed by a wash-out. The number of Tg(ins:FUCCI-S/G2/M)⁺ beta-cells was examined 24 hours after the initiation of the treatment. The short treatment with 200 and 500 μM H₂O₂ increased the number of Tg(ins:FUCCI-S/G2/M)⁺ beta-cells compared to controls (n = 51 larvae for 200 μM H₂O₂; n = 86 larvae for controls; p = 0.02) (n = 68 larvae for 500 μM H₂O₂; n = 96 for larvae for controls; p = 0.02). (C) Confocal projections of the principal islets of 4 dpf Tg(ins:H2B-GFP; ins:dsRED) larvae treated from 3 to 4 dpf with 50 μM H₂O₂. (D) Quantification of the average number of beta-cells marked with H2B-GFP in controls and H₂O₂-treated larvae. H₂O₂-treatement increased beta-cell number (n = 30 larvae) compared to controls (n = 26 larvae) (p = 0,046). Error bars = SEM. (E) Bar chart showing the increase in the number of INS-1 cells after H₂O₂ or NAC-treatments. Data from four independent experiments and > 3.5 × 10⁵ cells per condition were normalized to the mean of control treated cells ( = 100%) and analyzed for significance using a one-way ANOVA with Dunnett’s multiple comparison test. Error bars indicate S.E.M. Cartoons with permission by Luis Delgadillo.

High levels of H₂O₂ promote new beta-cell neogenesis and regeneration. (A) Quantification of the average number of beta-cells marked with H2B-GFP in controls (n = 22) and larvae treated with 1 mM H₂O₂ from 3 to 4 dpf (n = 23). The larvae treated with 1 mM H₂O₂ exhibit an increase in the number of beta-cells compared to controls (p = 0,04). (B) Confocal projections of the principal islet of 4 dpf WT and Tg(ins:H2B-GFP; ins:dsRED) larvae treated with vehicle or 1 mM H₂O₂ from 3 to 4 dpf. Arrowheads point to H2B-GFP⁺ dsRED⁻ cells. (C) Quantification of the number of H2B-GFP⁺ and dsRED⁻ cells in controls and H₂O₂-treated larvae. Beta-cells that are H2B-GFP⁺ but dsRED⁻ represent recently-formed cells due to the slower maturation of dsRED compared to GFP. H₂O₂-treatment increased the number H2B-GFP⁺ and dsRED⁻ beta-cells compared to controls (p = 0,004), indicating an increase in new beta-cell formation. Error bars = SEM. (D) Confocal sections of primary islets from Tg(Tp1:H2BmCherry) larvae stained for insulin (blue). Tg(Tp1:H2BmCherry) drives expression of a fluorescent protein with long half-life (H2BmCherry) in the Notch responsive cells (NRCs) in the pancreas. Beta-cells that differentiate from NRCs can retain H2BmCherry-flurescence due to perdurance. The larvae were treated with vehicle or 1 mM H₂O₂ from 3 to 4 dpf. The arrows indicate Tp1:H2BmCherry⁺ and insulin⁺ cells in the periphery of the primary islets in controls and H₂O₂-treated larvae. See Figure S6 for higher resolution images. (E) Quantification of the average number of Tp1:H2BmCherry⁺ and insulin⁺ cells in the principal islets of controls (n = 21) and H₂O₂-treated larvae (n = 19), showing an increase following the H₂O₂-treatement (p = 0,049). (F) Confocal sections of primary islets from Tg(Tp1:H2BmCherry); Tg(neurod1-GFP) larvae. The arrows indicate Tp1:H2BmCherry⁺ and GFP⁺ cells in the periphery of the primary islets in controls and H₂O₂-treated larvae. See Figure S7 for higher resolution images. (G) Quantification of the average number of Tp1:H2BmCherry⁺ and GFP⁺ cells in the principal islets of controls (n = 21) and H₂O₂-treated larvae (n = 19), showing an increase following the H₂O₂-treatement (p = 0,046). (H) Confocal projections of Tg(ins:FLAG-NTR); Tg(ins:H2B-GFP;ins:dsRED) larvae. Beta-cells were ablated by incubating larvae in MTZ at 3 dpf. Subsequently, the larvae were treated with vehicle or 1 mM H₂O₂. (I) Quantification of the average number of beta-cells in controls (n = 24) and H₂O₂-treated larvae (n = 22). H₂O₂-treatment significantly increased the number of regenerating beta-cells (p = 0,03). Note that a majority of the regenerated beta-cells are H2B-GFP⁺ and dsRED⁻. Error bars = SEM.
