ZFIN Image: Zhao et al., 2020, Fig. 4


Figure Caption

Fig. 4

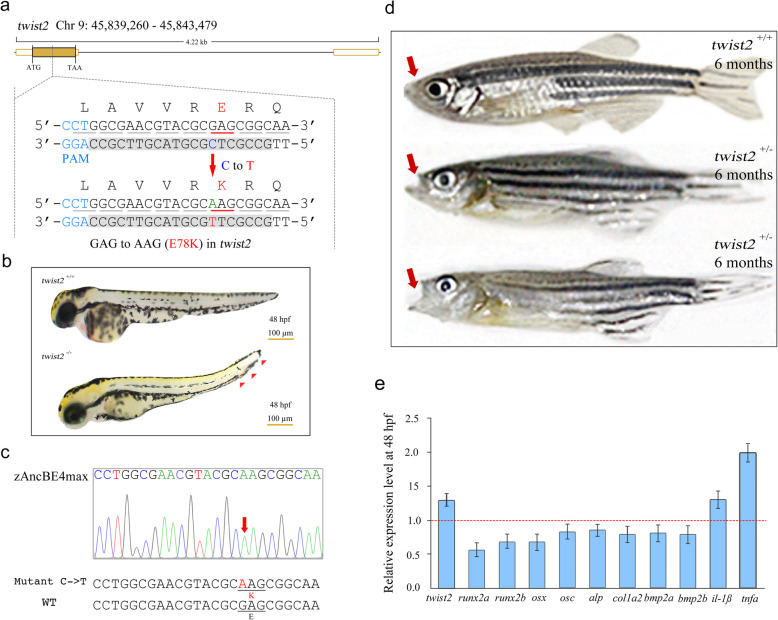

Generation of an AMS zebrafish model using the zAncBE4max system. a The designed target site in the twist2 gene on chromosome 9 in zebrafish. The nucleotide changes in C-to-T editing are underlined in red. The corresponding amino acid change is E78K. PAM region is indicated in blue. b Homozygous mutant (E78K) embryos exhibit a short truck and curved tail (red arrowheads) at 48 hpf. Scale bar, 100 μm. c Genotyping of homozygous mutant larva by PCR and sequencing. Red arrow indicates point mutation site C-to-T. d Phenotype of heterozygous mutants (E78K) exhibited a protruding jaw, unclosed mouth (red arrows), and emaciated body at the age of 6 months. For more details, see Additional file 3: Movie 1. e qRT-PCR analysis indicates the relative expression levels of twist2 and related genes in twist2 homozygous E78K mutant embryos

Figure Data

Expression / Labeling details

Phenotype details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ BMC Biol.
