ZFIN ID: ZDB-IMAGE-180522-28
Figures for Duong et al., 2017

Genes:

Figure Caption/Comments:

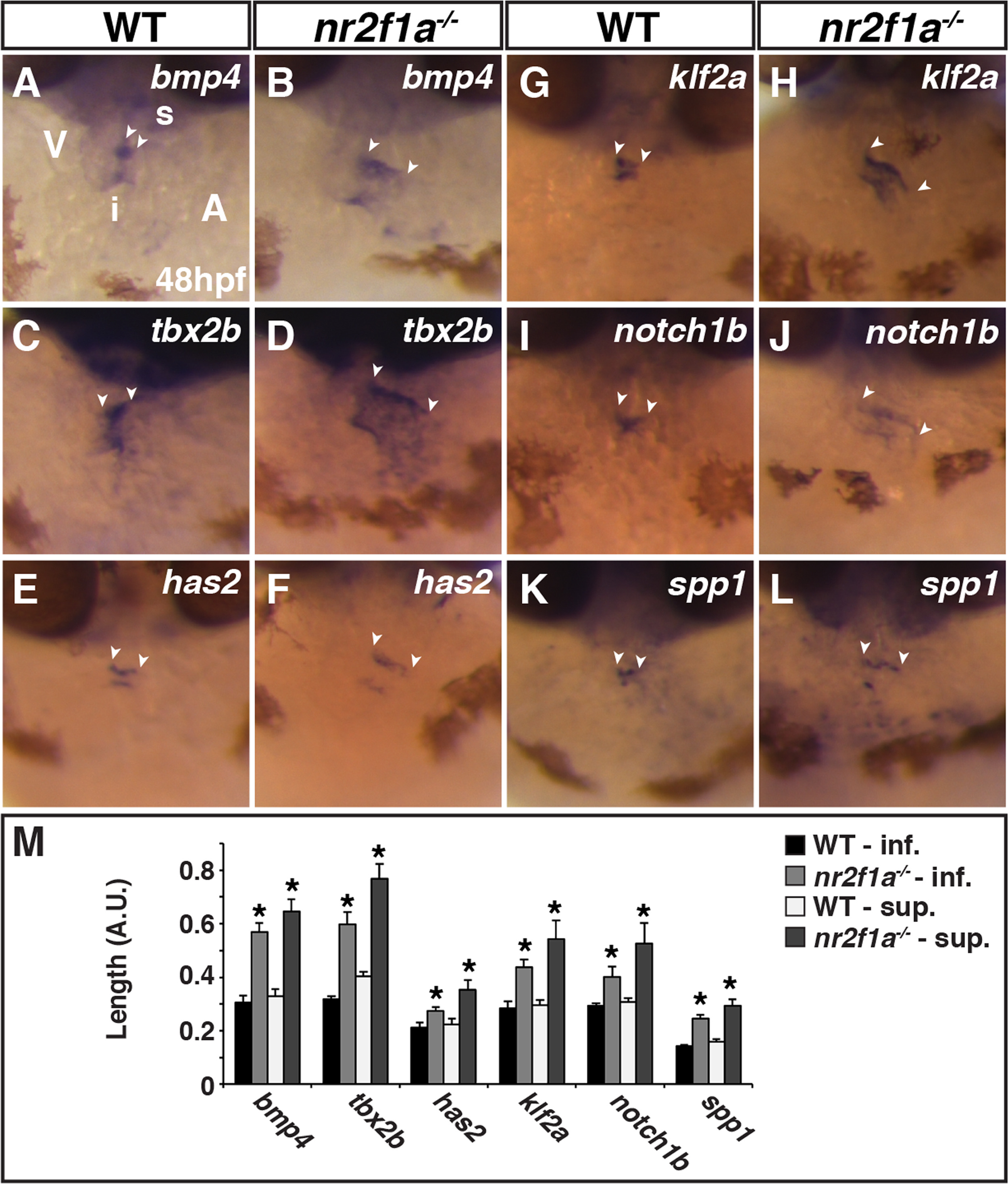

Fig. 3

AVC markers are expanded innr2f1amutant hearts. (A-L) ISH for bmp4 (A,B), tbx2b (C,D), has2 (E,F), klf2a (G,H), notch1b (I,J), and spp1 (K,L) in WT and nr2f1a mutant embryos. Images are frontal views with dorsal up. The relative position of the ventricle and atrium is the same in all images. Arrowheads indicate the length of expression on the superior side (s) of the AVC, which is adjacent to the inner curvature of the ventricle. Inferior side (i) of the AVC is adjacent to the outer curvature of the ventricle. (M) Length measurements of marker expression in the AVC. (WT bmp4 n = 7, nr2f1a-/-bmp4 n = 7, WT tbx2b n = 10, nr2f1a-/-tbx2b n = 10, WT has n = 7, nr2f1a-/-has n = 7, WT klf2a n = 6, nr2f1a-/-klf2a n = 6, WT notch1b n = 5, nr2f1a-/-notch1b n = 5, WT spp1 n = 9, nr2f1a-/-klf2a n = 9.).

Figure Data:
Acknowledgments:
ZFIN wishes to thank the journal for permission to reproduce figures from this article. Please note that this material may be protected by copyright.
