FIGURE

Fig. 6

ID

ZDB-FIG-260408-6

Publication

Hernandez Herrera et al., 2026 - ercc6 deficient zebrafish exhibit UV and metronidazole sensitivity, increased oxygen consumption, and impaired hair cell mechanoelectrical transduction which can be restored by the superoxide dismutase mimetic MnTBAP

Other Figures

All Figure Page

Back to All Figure Page

Fig. 6

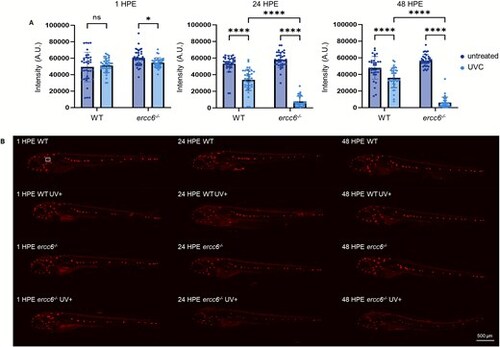

Mechanoelectrical transduction function in ercc6−/− larvae. (A) Relative FM1–43 uptake in the MI1 lateral line neuromast following UVC exposure, as indicated by fluorescence intensity, in 1-, 24-, and 48-h post exposure (HPE) larvae. (B) Representative images of zebrafish lateral line fluorescence intensity following FM1–43 uptake (MI1 neuromast indicated with white box for clarity in B top left panel). Data is from 5 replicate experiments with a total of 34–38 larvae per group and is represented by mean ± SD. Each data point represents a single zebrafish larva. Differences between groups were analyzed via two-way ANOVA with multiple comparisons (*P-value<0.05; ****P-value<0.0001). Scale bar: 500 μm.
