FIGURE

Fig. 5

ID

ZDB-FIG-260408-5

Publication

Hernandez Herrera et al., 2026 - ercc6 deficient zebrafish exhibit UV and metronidazole sensitivity, increased oxygen consumption, and impaired hair cell mechanoelectrical transduction which can be restored by the superoxide dismutase mimetic MnTBAP

Other Figures

All Figure Page

Back to All Figure Page

Fig. 5

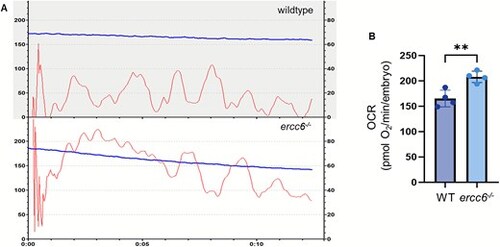

Oxygen consumption rates of ercc6−/− larvae. (A) Representative readout of oxygen levels in measurement chambers using an Oroboros Oxygraph 2 K. Blue line shows concentration of oxygen in chambers (nmol O2/ml), red line shows rate of change of oxygen concentration (pmol O2/s*ml). (B) Basal oxygen consumption rates of 5-days post fertilization larvae. Data is from 4 replicate experiments with 60 embryos per group, per experiment and is represented by mean ± SD. Each data point represents OCR averaged from 60 pooled larvae. Statistical analysis between these two groups was conducted via an independent t-test (**P-value = 0.0052).
