Fig. 4

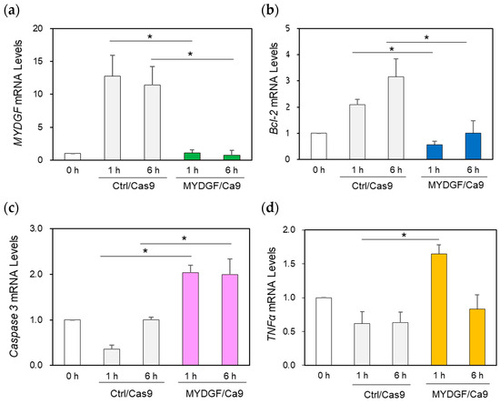

Effect of MYDGF knockdown with the CRISPR/Cas9 system using the intravitreal injection method. (a) Injection of MYDGF-specific sgRNA/Cas9 1 h before ONI markedly suppressed MYDGF mRNA expression (MYDGF/Cas9) 1 h and 6 h after ONI. (b) Under MYDGF inhibition conditions, Bcl-2 was also noticeably suppressed (MYDGF/Cas9) 1 h and 6 h after ONI. (c) Caspase-3 mRNA expression significantly increased at 1 h and 6 h in the MYDGF/Cas9 treatment group after ONI compared to the control group (Ctrl/Cas9). (d) The inflammatory factor TNFα was noticeably upregulated under the suppression of MYDGF expression 1 h after ONI (MYDGF/Cas9) compared to the control (Ctrl/Cas9). Statistical analysis was performed using one-way ANOVAs, followed by Scheffe’s multiple-comparison tests. Data are expressed as the means ± SEMs (n = 5–6), with statistical significance set at * p < 0.05.

Expression Data

Genes:	bcl2a casp3a mydgf tnfa
Fish:	WT WT + CRISPR2-mydgf + CRISPR3-mydgf + CRISPR4-mydgf + CRISPR5-mydgf
Condition:	compression injury: cranial nerve II
Knockdown Reagents:	CRISPR2-mydgf CRISPR3-mydgf CRISPR4-mydgf CRISPR5-mydgf
Anatomical Term:	retina
Stage:	Adult

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	WT WT + CRISPR2-mydgf + CRISPR3-mydgf + CRISPR4-mydgf + CRISPR5-mydgf
Condition:	compression injury: cranial nerve II
Knockdown Reagents:	CRISPR2-mydgf CRISPR3-mydgf CRISPR4-mydgf CRISPR5-mydgf
Observed In:	retina
Stage:	Adult

Phenotype Detail
