FIGURE

Fig. 1

ID

ZDB-FIG-250829-26

Publication

Li et al., 2025 - Reelin/Disabled-1 Signalling Contributes to Functional Recovery on Zebrafish After Spinal Cord Injury

Other Figures

All Figure Page

Back to All Figure Page

Fig. 1

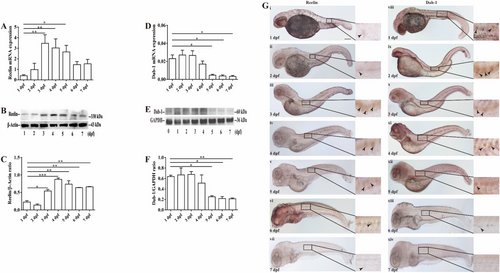

Temporal and spatial expression pattern of zebrafish Reelin and Dab-1 in the spinal cord by qPCR analysis of Reelin (A) and Dab-1 (D) mRNA between 1 and 7 dpf. Thirty embryos per group were pooled for qPCR analysis in three independent experiments. Glyceraldehyde 3-phosphate dehydrogenase (GAPDH) served as loading controls. Data represent means ± SEM, *p < 0.05, **p < 0.01, one-way ANOVA with Tukey's post hoc test. Western blot analysis of Reelin (B, C) and Dab-1 (E, F) protein between 1 and 7 dpf. Thirty embryos per group were pooled for western blot analysis in three independent experiments. GAPDH or β-actin served as loading controls. Data represent means ± SEM, *p < 0.05, **p < 0.01, ***p < 0.001, one-way ANOVA with Tukey's post hoc test. (G) Expression pattern of Reelin and Dab-1 as shown by whole-mount in situ hybridization. Arrowheads denote Reelin and Dab-1 in the spinal cord. Scale bar, 200 μm for all images.

Expression Data

Genes:	dab1a reln
Fish:	WT
Anatomical Terms:	spinal cord whole organism
Stage Range:	Prim-5 to Days 7-13

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Int. J. Dev. Neurosci.
